How to install the PG05 skid plate and pipe guard on KTM, Husqvarna and GasGas 250/300 2T 2020–2023

Three pages with photos: removing the screws from the frame sockets, fitting the rear and front brackets, positioning the guard and tightening the screws. Threadlocker is recommended. For all PG05 variants: KTM and Husqvarna 2020–2023, GasGas 2021–2023. PDF in English to download.

Page 1 of 3

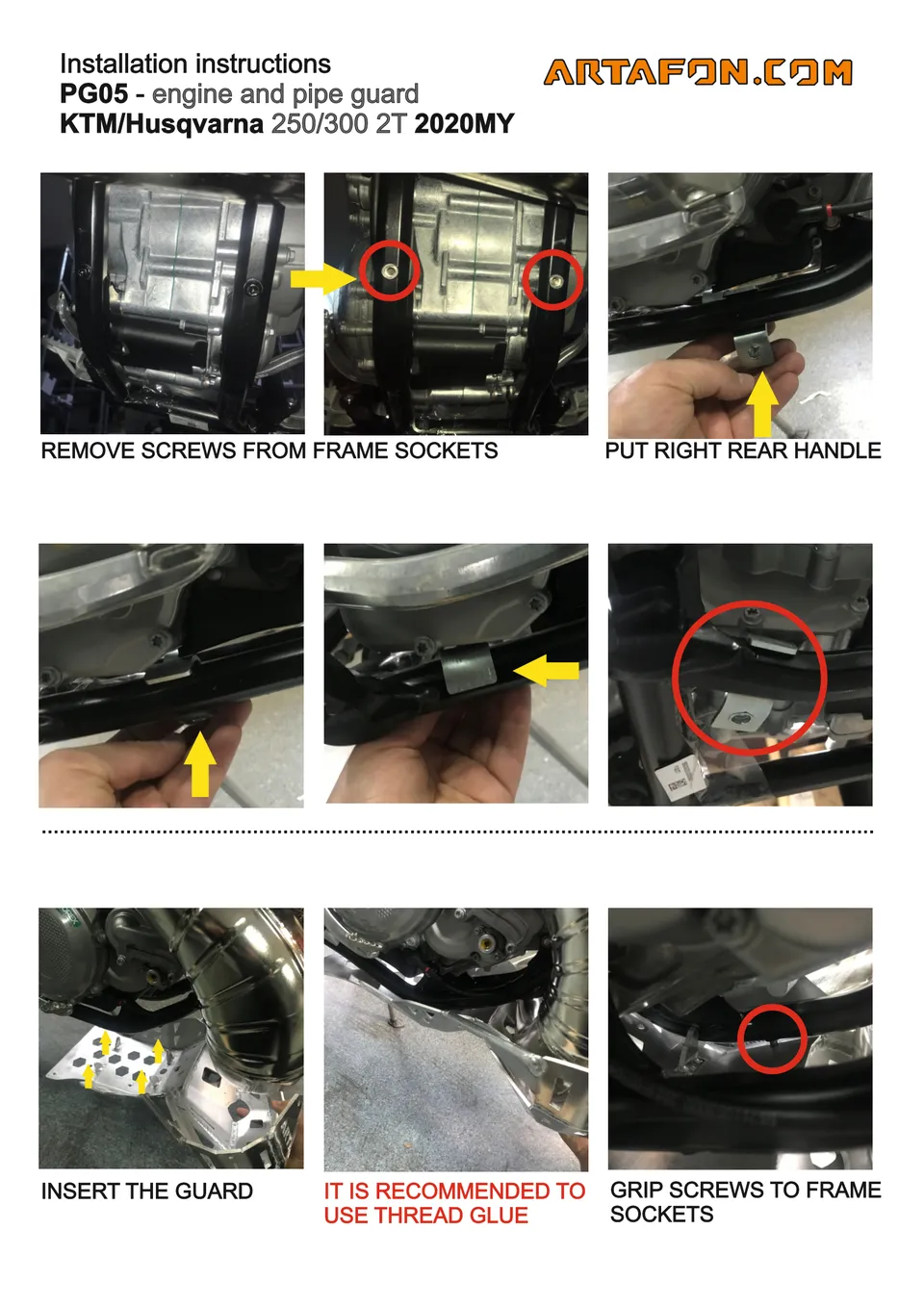

engine and pipe guard 250/300 2T REMOVE SCREWS FROM FRAME SOCKETS PUT RIGHT REAR HANDLE INSERT THE GUARD IT IS RECOMMENDED TO USE THREAD GLUE GRIP SCREWS TO FRAME SOCKETS

Page 2 of 3

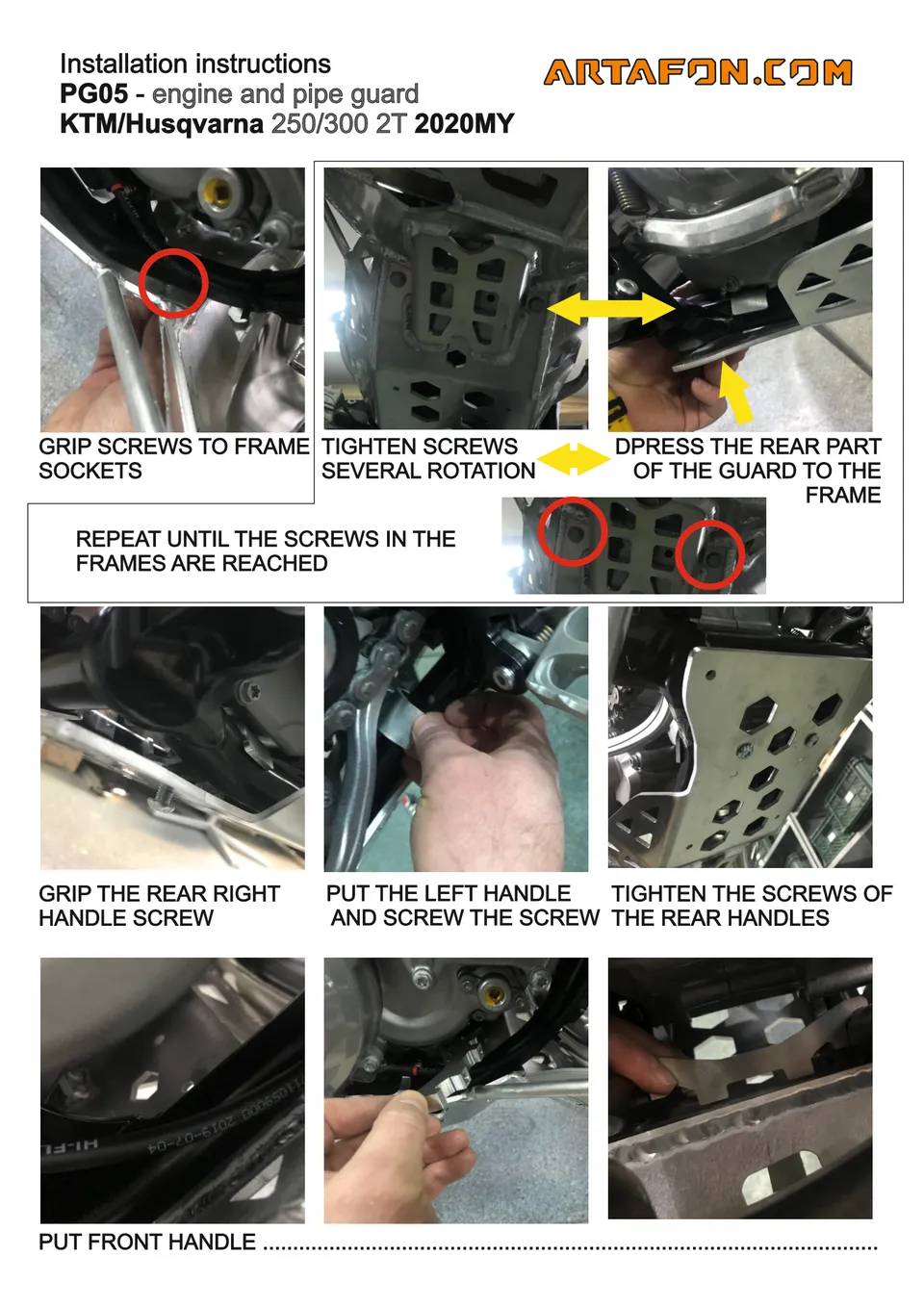

engine and pipe guard 250/300 2T GRIP SCREWS TO FRAME TIGHTEN SCREWS SOCKETS DPRESS THE REAR PART OF THE GUARD TO THE FRAME REPEAT UNTIL THE SCREWS IN THE FRAMES ARE REACHED GRIP THE REAR RIGHT HANDLE SCREW PUT THE LEFT HANDLE AND SCREW THE SCREW THE REAR HANDLES TIGHTEN THE SCREWS OF PUT FRONT HANDLE …

Page 3 of 3

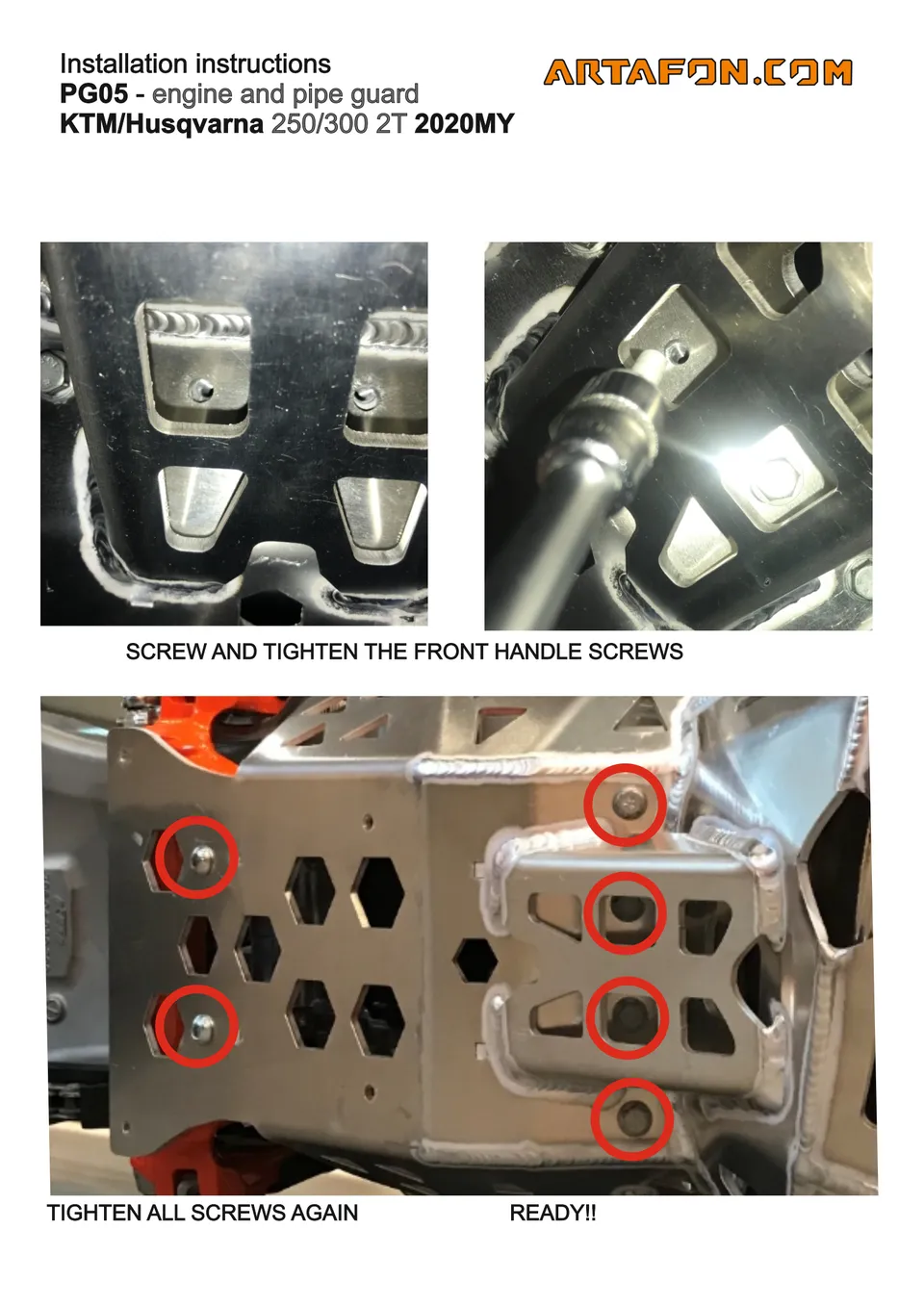

engine and pipe guard 250/300 2T SCREW AND TIGHTEN THE FRONT HANDLE SCREWS TIGHTEN ALL SCREWS AGAIN READY!!
