How to install the PG02 skid plate and pipe guard on KTM and Husqvarna 250/300 2T 2017–2019
Three pages: the guard's features and 10 numbered photos with captions (unscrewing two screws from the frame, hooking on the guard and the rear holders, fitting the front holder, tightening all screws firmly). Use threadlocker on all screws. For KTM and Husqvarna 250/300 2T 2017–2019, TPI and carburetor. PDF in English to download.
Products covered by this guide
Skid plates · Pipe guards190.72 €

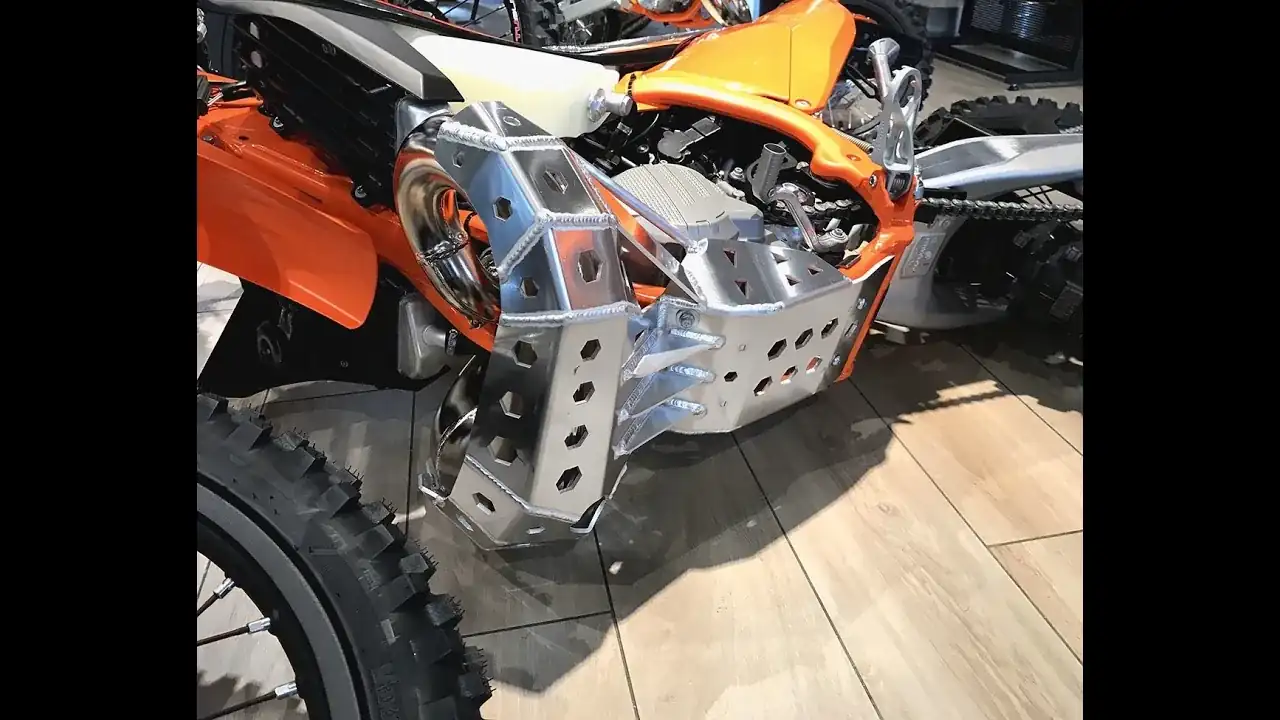

Installation video
By clicking “Play video”, you agree to the video being loaded from YouTube (Google). Google will then receive your IP address, among other data, and may store cookies or similar data in your browser; data may be transferred to the USA. Your consent applies only to this one load of the video. Details in the privacy policy.

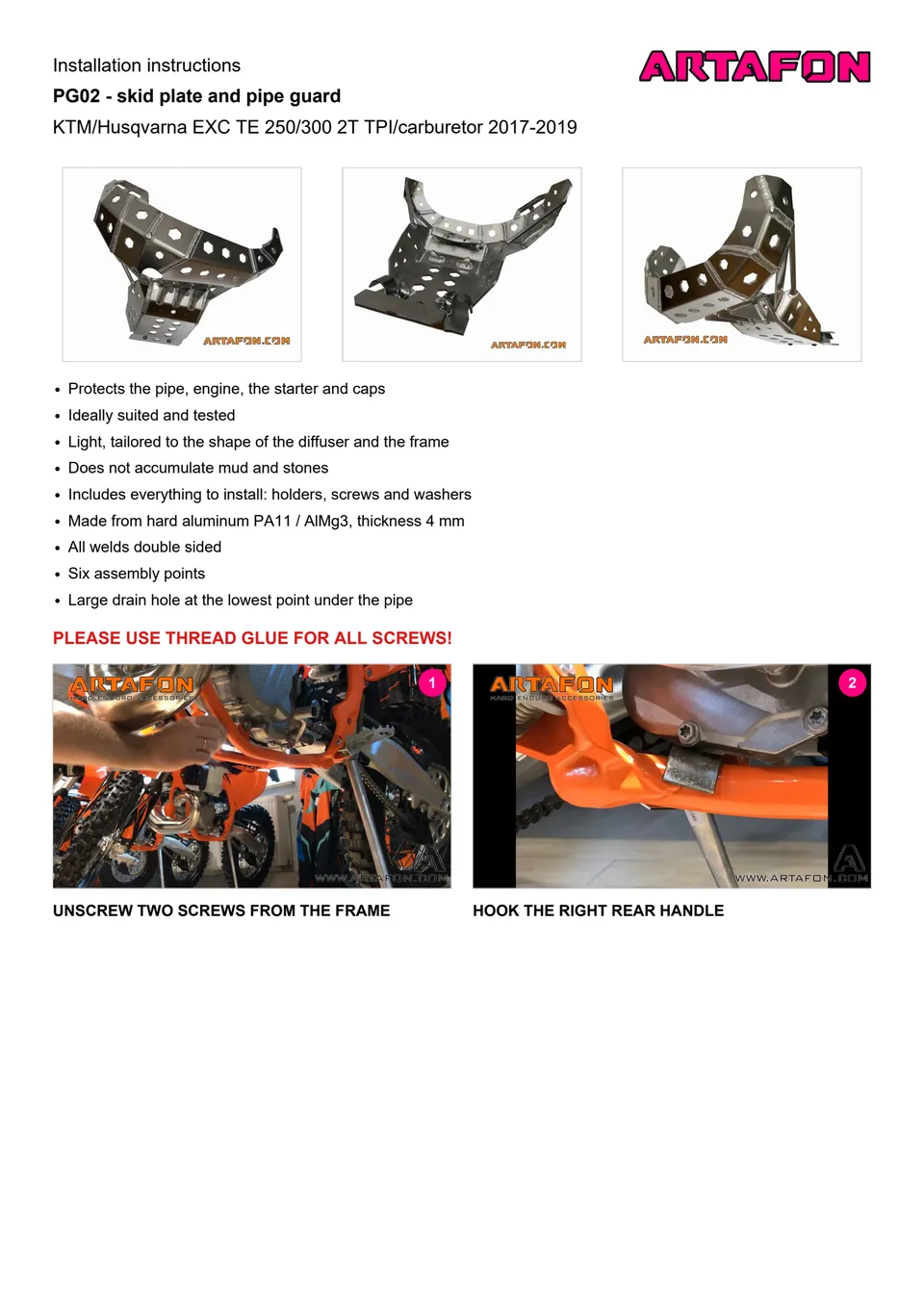

Watch on YouTubePage 1 of 3
PG02 - skid plate and pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI/carburetor 2017-2019 Protects the pipe, engine, the starter and caps Ideally suited and tested Light, tailored to the shape of the diffuser and the frame Does not accumulate mud and stones Includes everything to install: holders, screws and washers Made from hard aluminum PA11 / AlMg3, thickness 4 mm All welds double sided Six assembly points Large drain hole at the lowest point under the pipe PLEASE USE THREAD GLUE FOR ALL SCREWS! UNSCREW TWO SCREWS FROM THE FRAME HOOK THE RIGHT REAR HANDLE

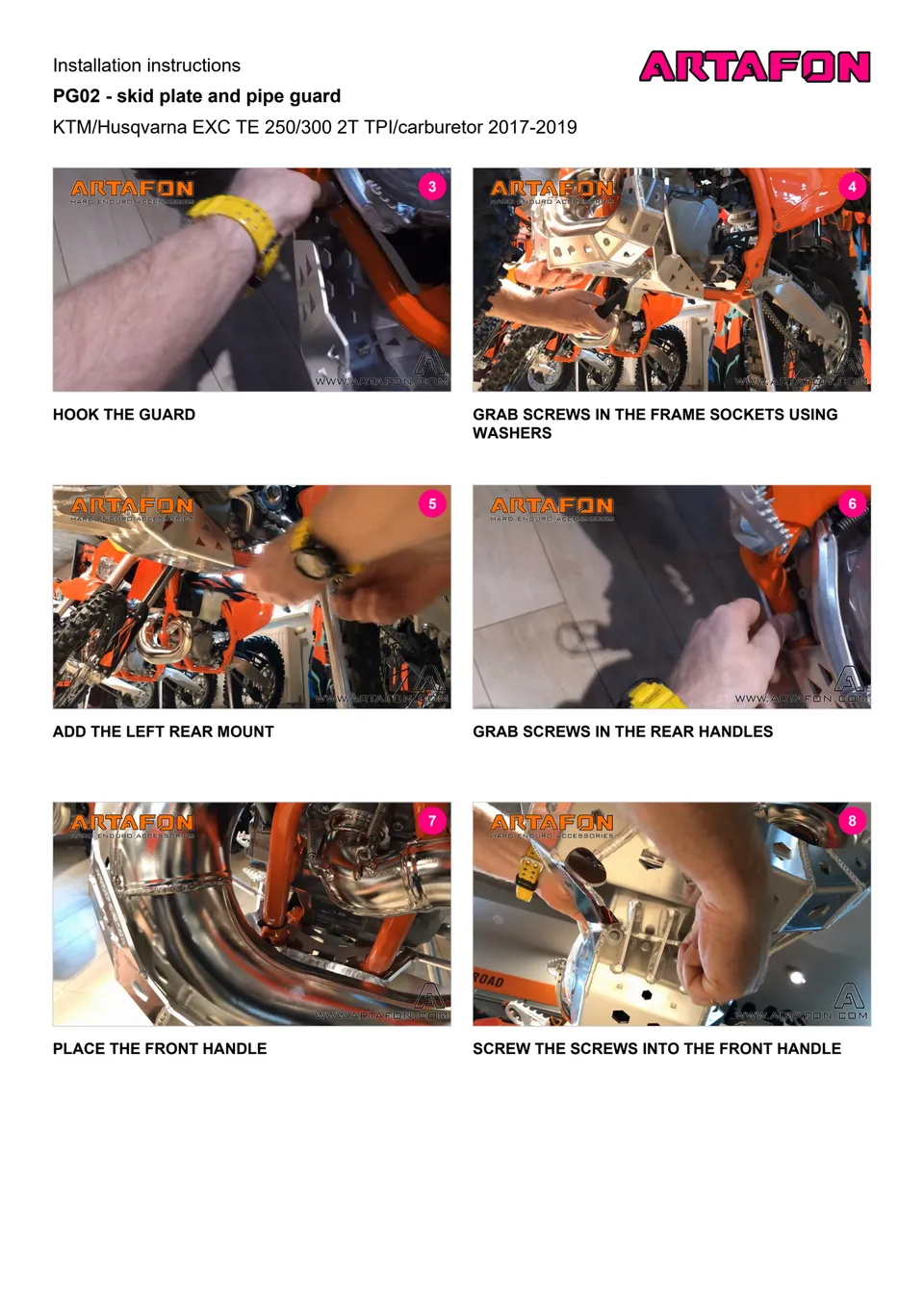

Page 2 of 3
PG02 - skid plate and pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI/carburetor 2017-2019 HOOK THE GUARD GRAB SCREWS IN THE FRAME SOCKETS USING WASHERS ADD THE LEFT REAR MOUNT GRAB SCREWS IN THE REAR HANDLES PLACE THE FRONT HANDLE SCREW THE SCREWS INTO THE FRONT HANDLE

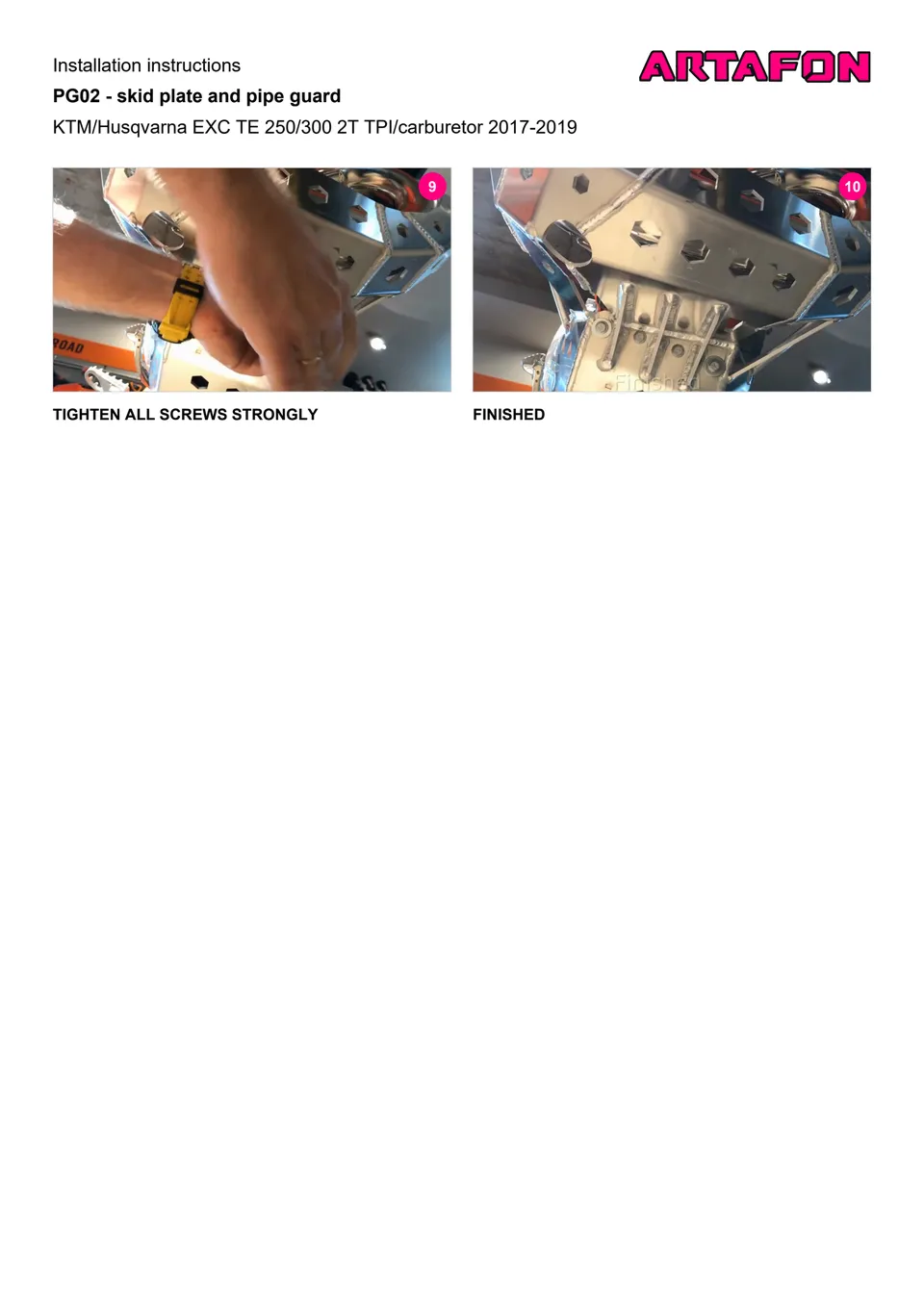

Page 3 of 3
PG02 - skid plate and pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI/carburetor 2017-2019 TIGHTEN ALL SCREWS STRONGLY
