How to install the PG11 pipe guard on KTM, Husqvarna and GasGas 250/300 2T TPI 2020–2023
Three pages, 15 numbered photos with captions: detaching the spring, unscrewing the screws from the sockets and the frame, fitting the holders, starting the nuts and screws, tightening everything alternately and putting the spring back on. For KTM and Husqvarna 2020–2023 and GasGas 2021–2023. PDF in English to download.
Products covered by this guide
Pipe guards208.72 €

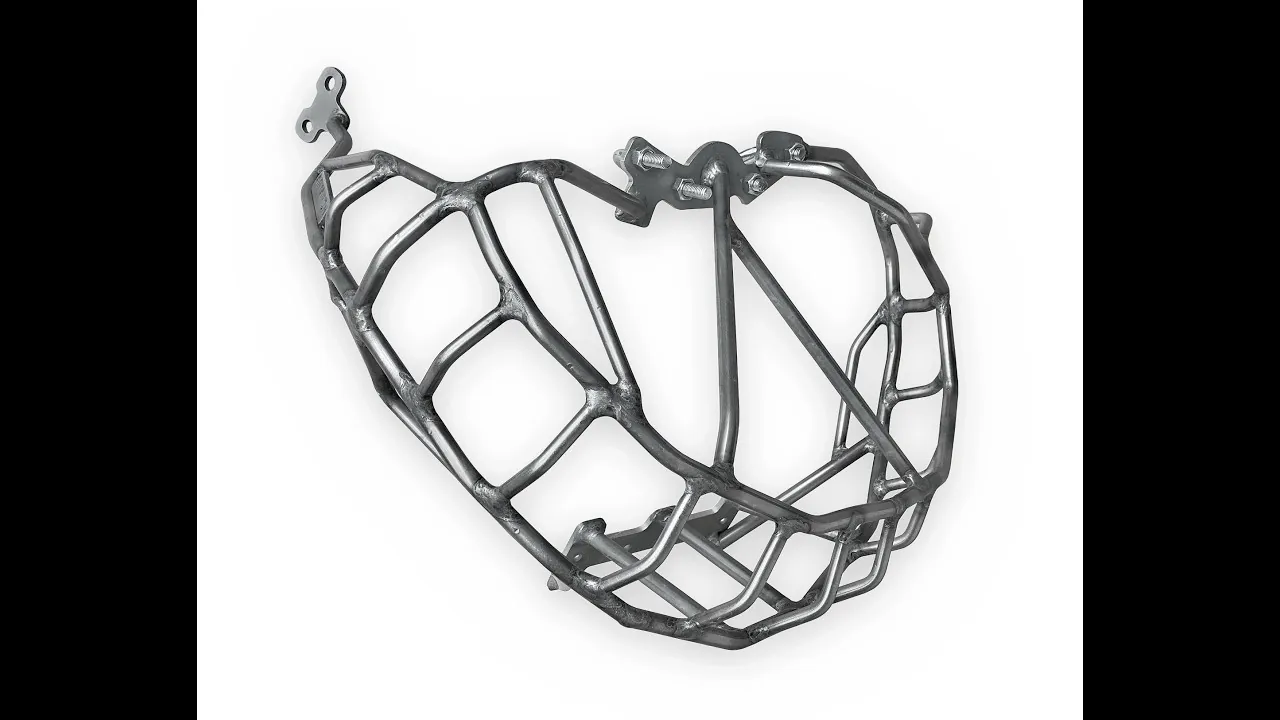

Installation video
By clicking “Play video”, you agree to the video being loaded from YouTube (Google). Google will then receive your IP address, among other data, and may store cookies or similar data in your browser; data may be transferred to the USA. Your consent applies only to this one load of the video. Details in the privacy policy.

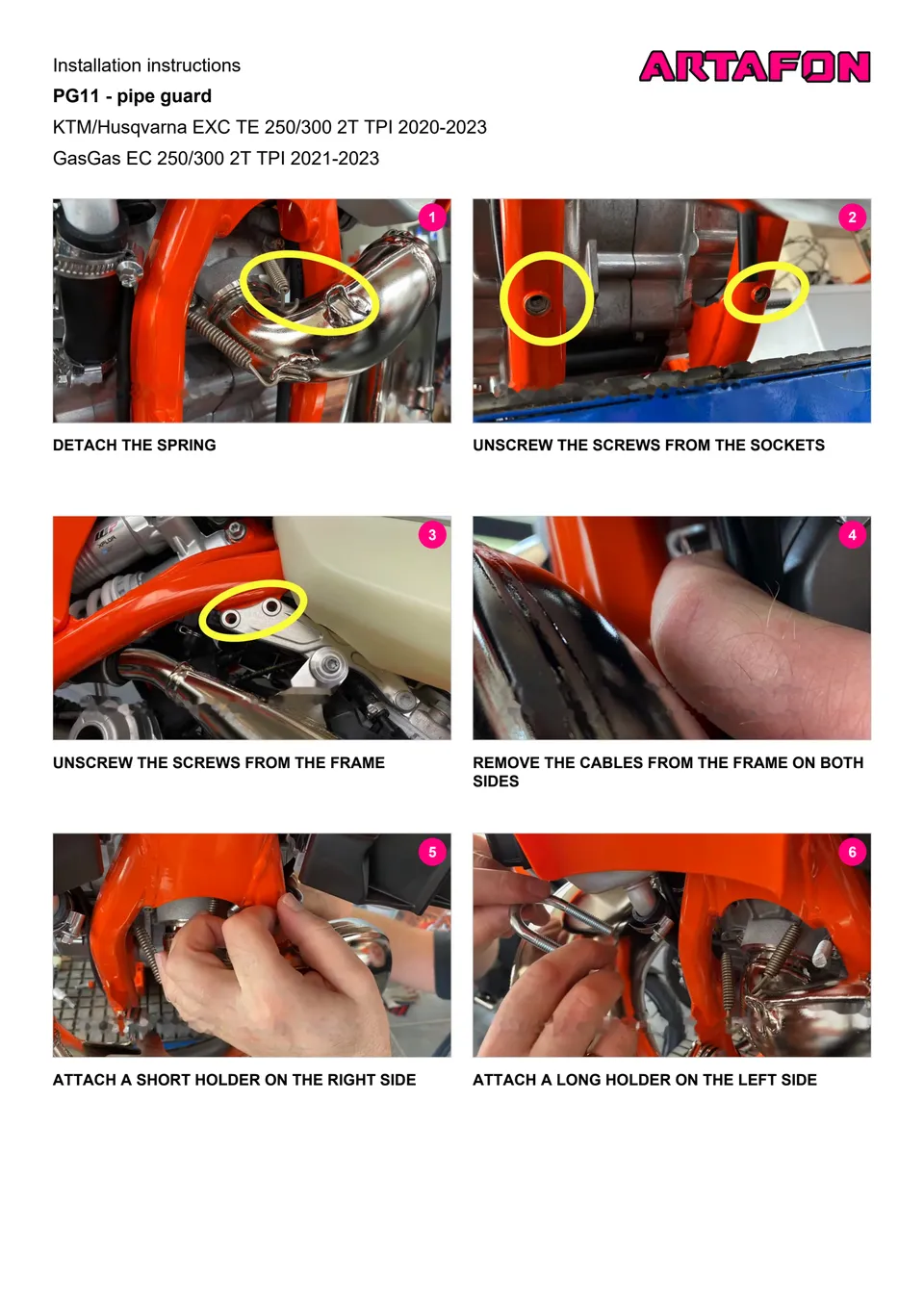

Watch on YouTubePage 1 of 3
PG11 - pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI 2020-2023 GasGas EC 250/300 2T TPI 2021-2023 DETACH THE SPRING UNSCREW THE SCREWS FROM THE SOCKETS UNSCREW THE SCREWS FROM THE FRAME REMOVE THE CABLES FROM THE FRAME ON BOTH SIDES ATTACH A SHORT HOLDER ON THE RIGHT SIDE ATTACH A LONG HOLDER ON THE LEFT SIDE

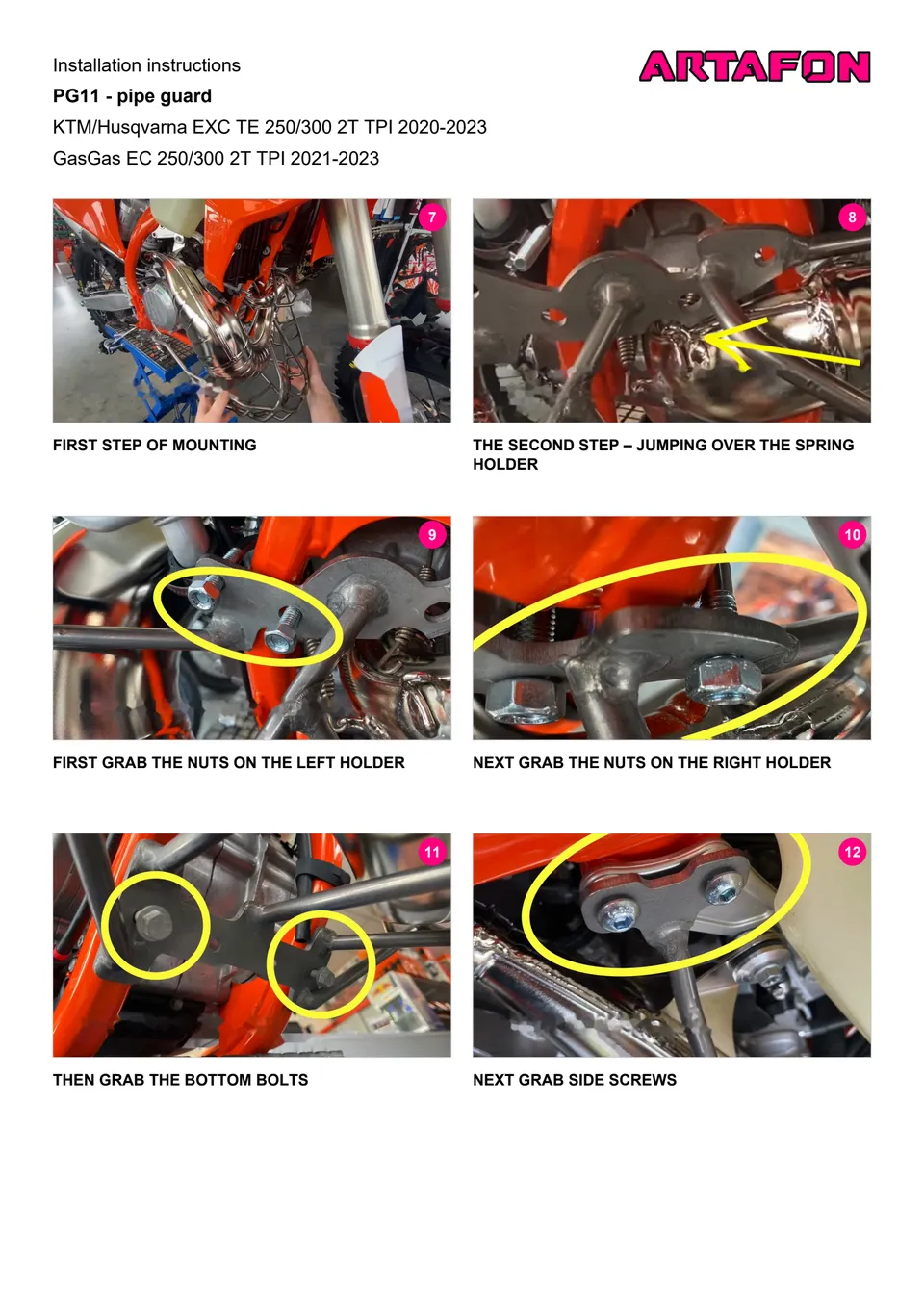

Page 2 of 3
PG11 - pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI 2020-2023 GasGas EC 250/300 2T TPI 2021-2023 FIRST STEP OF MOUNTING THE SECOND STEP – JUMPING OVER THE SPRING HOLDER FIRST GRAB THE NUTS ON THE LEFT HOLDER NEXT GRAB THE NUTS ON THE RIGHT HOLDER THEN GRAB THE BOTTOM BOLTS NEXT GRAB SIDE SCREWS

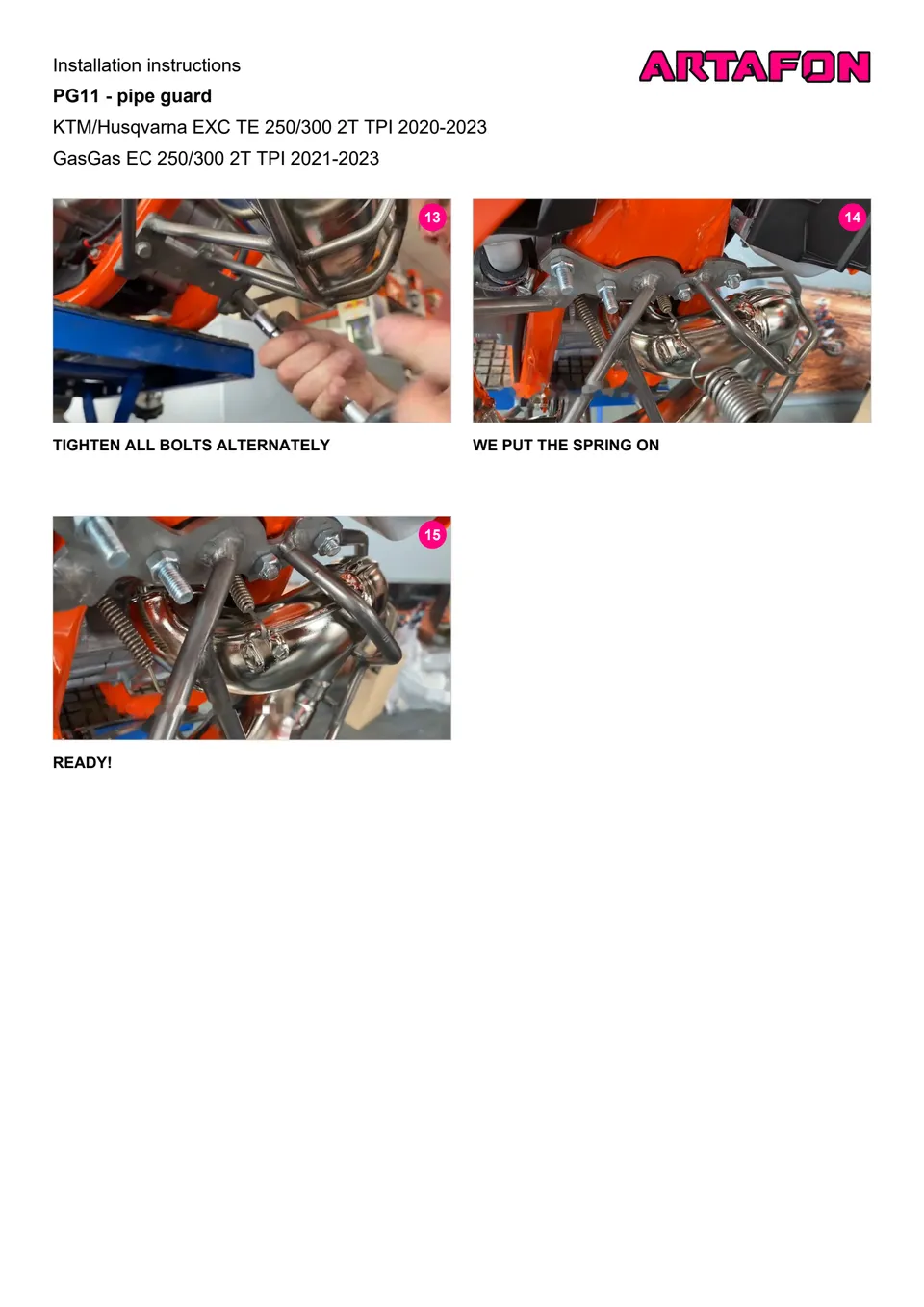

Page 3 of 3
PG11 - pipe guard KTM/Husqvarna EXC TE 250/300 2T TPI 2020-2023 GasGas EC 250/300 2T TPI 2021-2023 TIGHTEN ALL BOLTS ALTERNATELY WE PUT THE SPRING ON READY!
