How to install a fan relay on KTM EXC and Husqvarna TE FE 2017–2018 (TPI 2T and 4T)

Two pages, 9 numbered photos with captions: opening the airbox, taking off the first plug covered with a rubber pad, cutting a through hole in the rubber, putting the rubber and the relay back in the original place, closing the airbox. The relay is part of the ARTAFON fan set. For KTM EXC and Husqvarna TE FE 2017–2018 (TPI 2T and 4T). PDF in English to download.

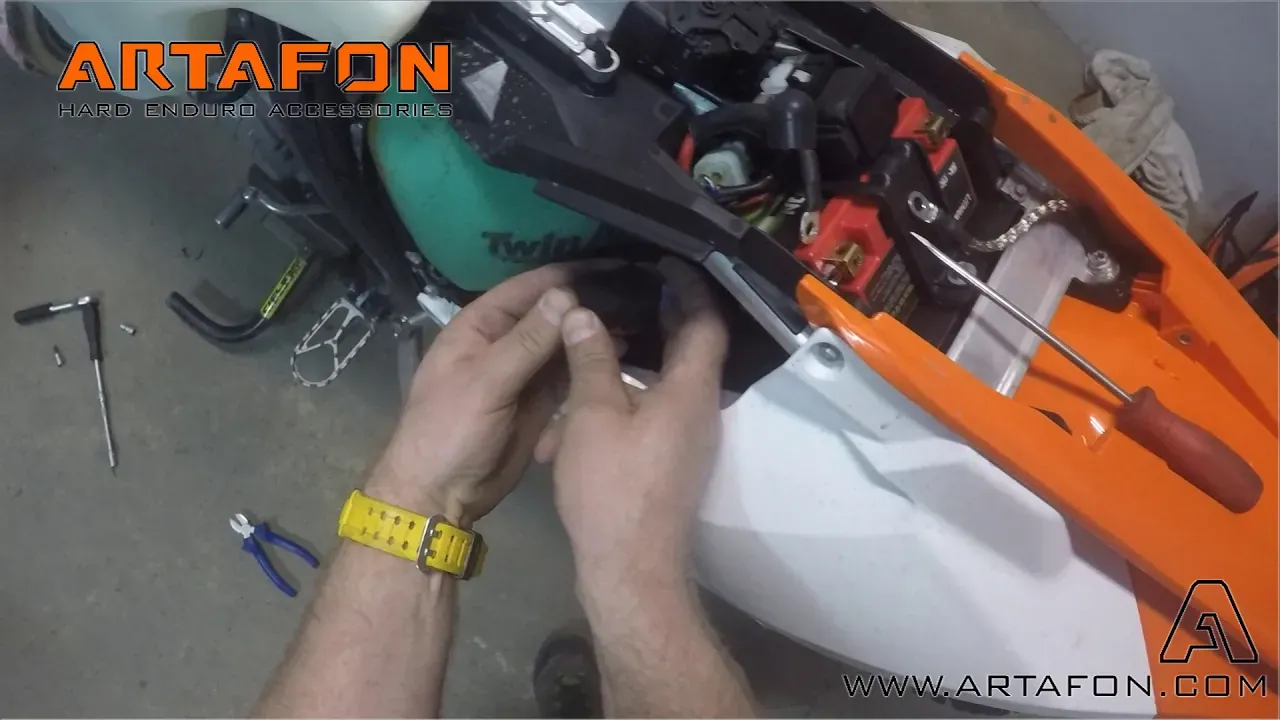

Installation video

Play video

By clicking “Play video”, you agree to the video being loaded from YouTube (Google). Google will then receive your IP address, among other data, and may store cookies or similar data in your browser; data may be transferred to the USA. Your consent applies only to this one load of the video. Details in the privacy policy.

Watch on YouTube

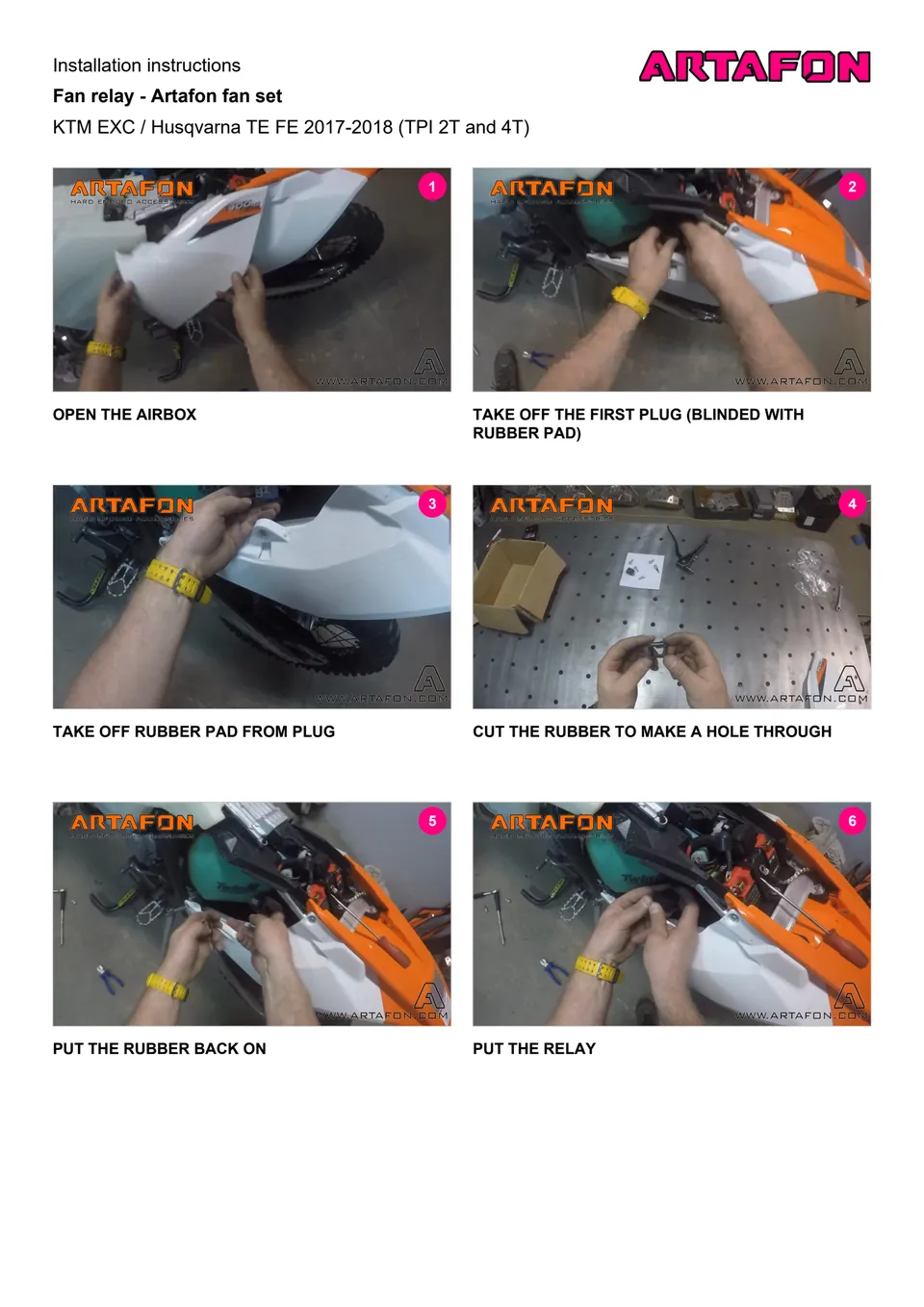

Page 1 of 2

Fan relay - ARTAFON fan set KTM EXC / Husqvarna TE FE 2017-2018 (TPI 2T and 4T) OPEN THE AIRBOX TAKE OFF THE FIRST PLUG (BLINDED WITH RUBBER PAD) TAKE OFF RUBBER PAD FROM PLUG CUT THE RUBBER TO MAKE A HOLE THROUGH PUT THE RUBBER BACK ON PUT THE RELAY

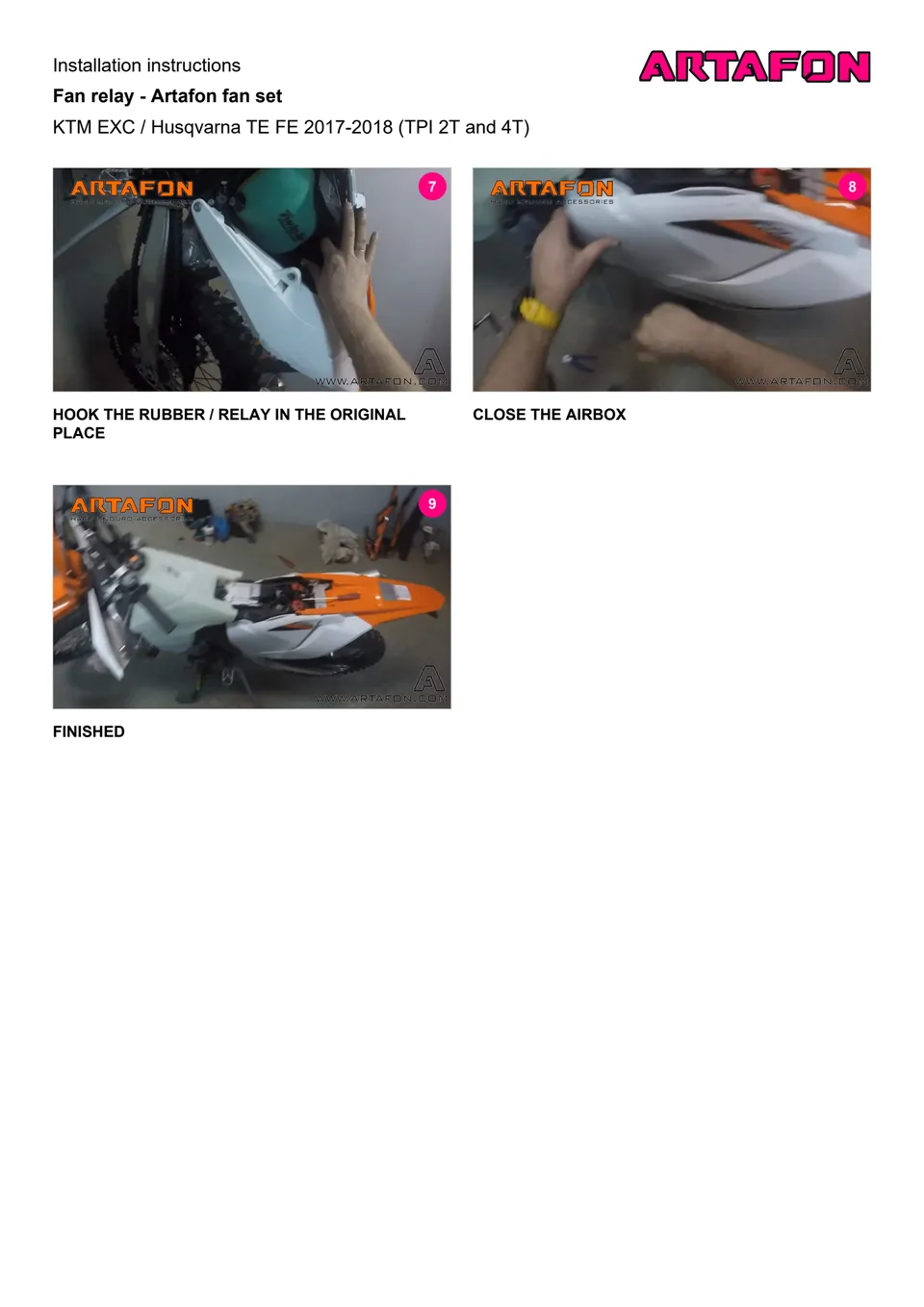

Page 2 of 2

Fan relay - ARTAFON fan set KTM EXC / Husqvarna TE FE 2017-2018 (TPI 2T and 4T) HOOK THE RUBBER / RELAY IN THE ORIGINAL PLACE CLOSE THE AIRBOX
