How to install RG18 radiator guards (with or without fan) on KTM, Husqvarna and GasGas TBI 2024–2027

Four pages with photos for TBI models: spacer rod lengths, tightening on both sides, side plastics, topping up the coolant and refitting the seat. Fitting the fan is covered by the separate Fan Set TBI instructions. PDF in English to download.

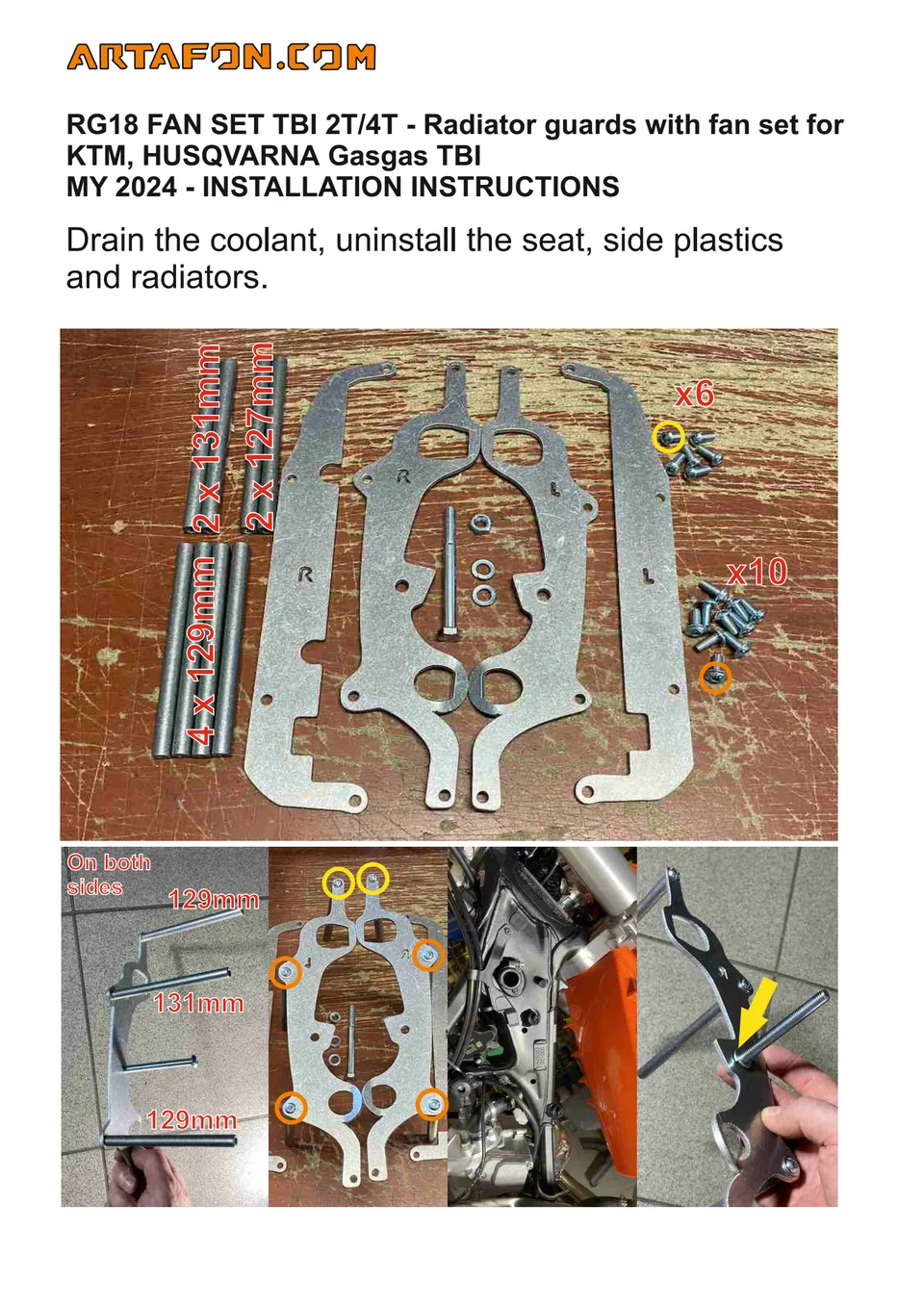

Page 1 of 4

RG18 FAN SET TBI 2T/4T - Radiator guards with fan set for KTM, HUSQVARNA Gasgas TBI MY 2024 - INSTALLATION INSTRUCTIONS Drain the coolant, uninstall the seat, side plastics and radiators. 2 x 131mm 2 x 127mm 4 x 129mm On both sides

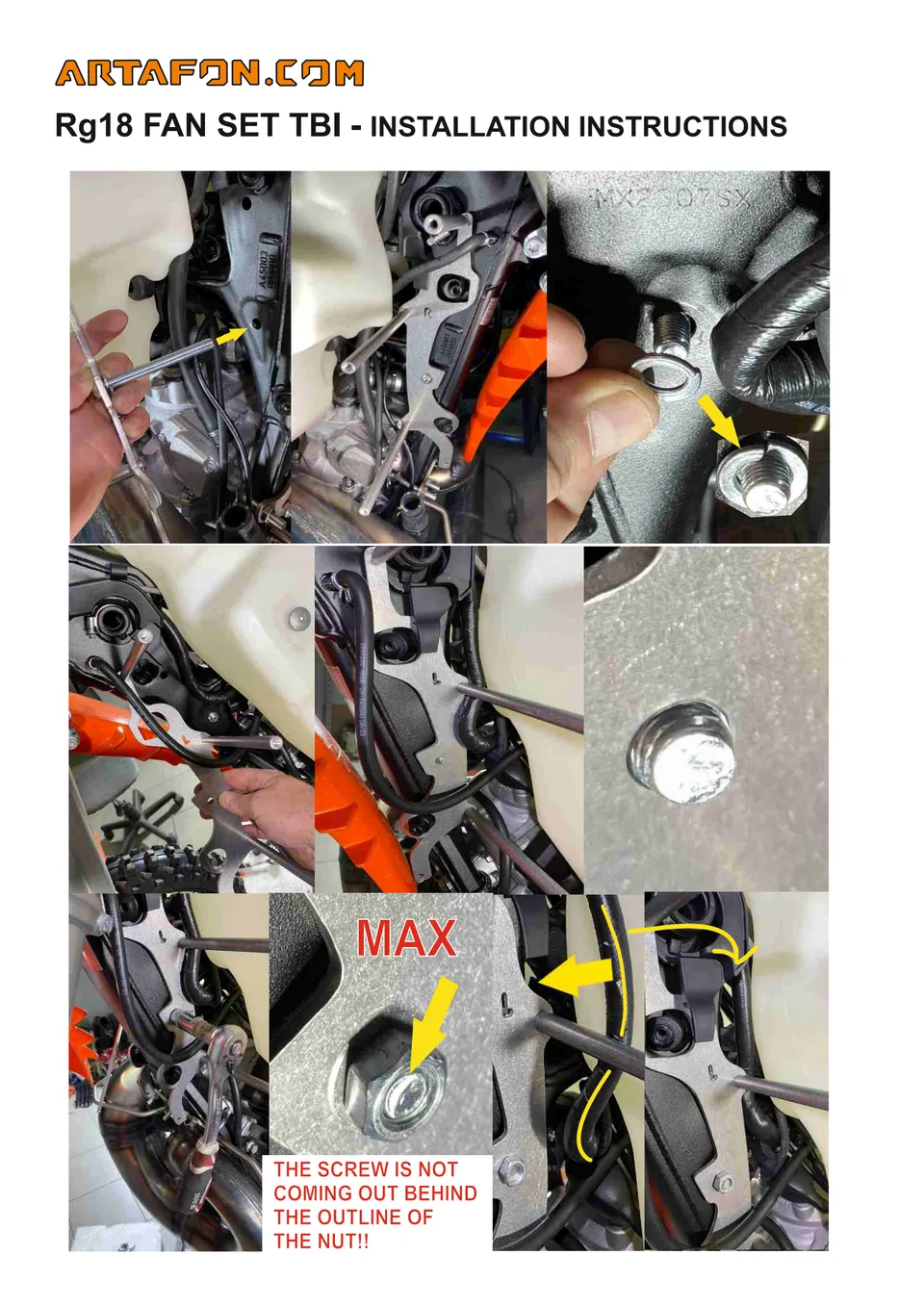

Page 2 of 4

Rg18 FAN SET TBI - THE SCREW IS NOT COMING OUT BEHIND THE OUTLINE OF THE NUT!!

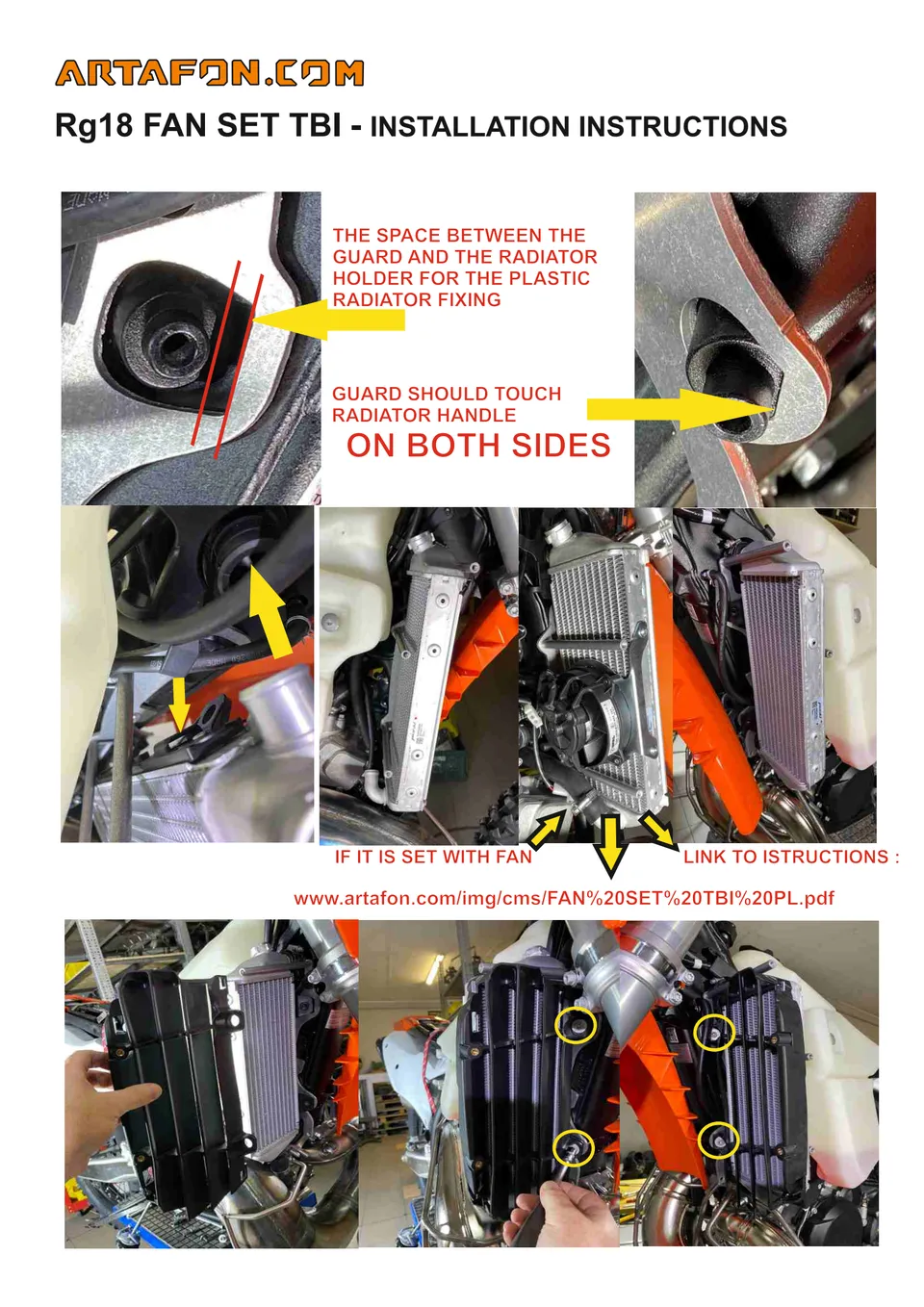

Page 3 of 4

Rg18 FAN SET TBI - THE SPACE BETWEEN THE GUARD AND THE RADIATOR HOLDER FOR THE PLASTIC RADIATOR FIXING GUARD SHOULD TOUCH RADIATOR HANDLE ON BOTH SIDES IF IT IS SET WITH FAN LINK TO ISTRUCTIONS :

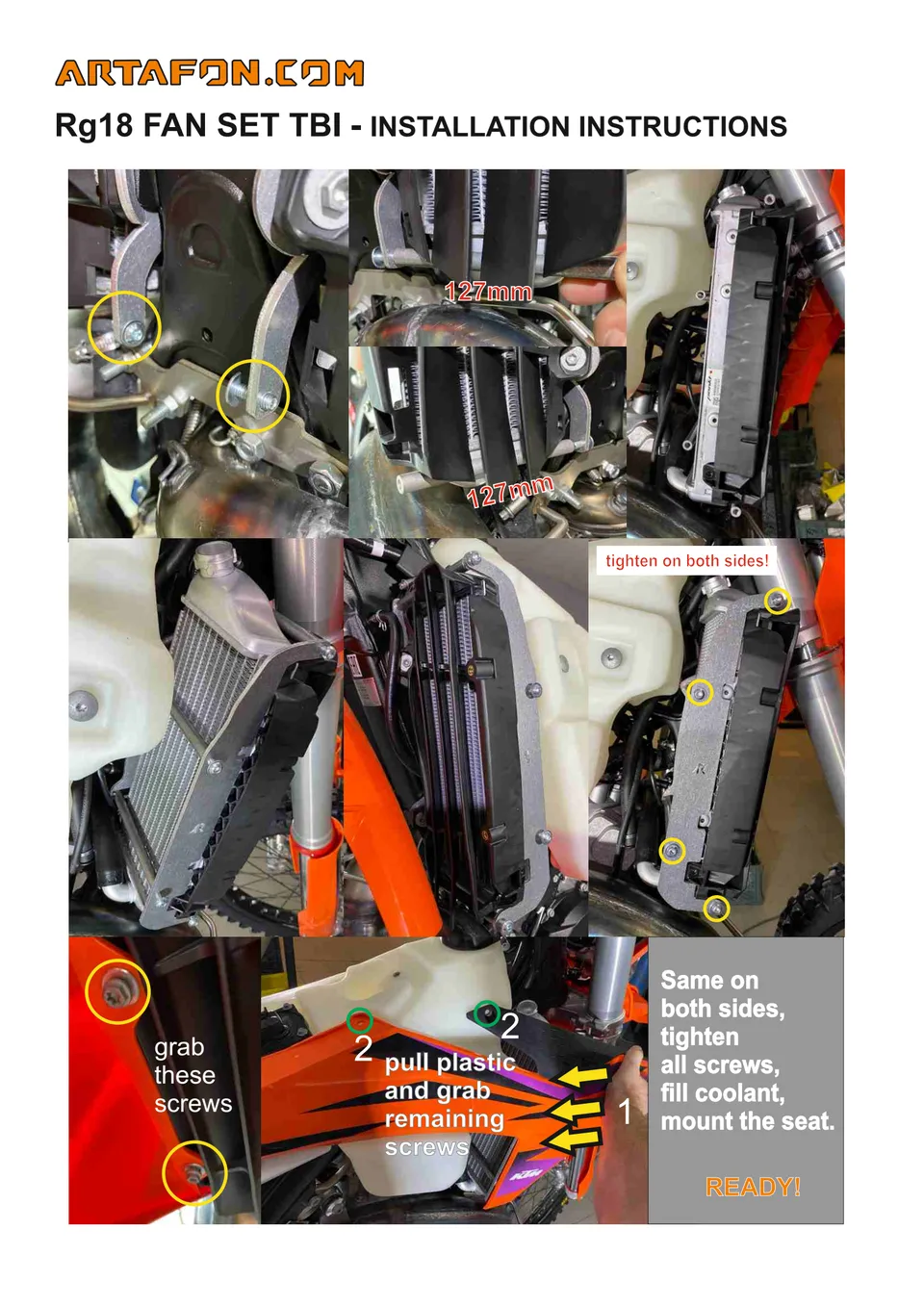

Page 4 of 4

Rg18 FAN SET TBI - tighten on both sides! Same on both sides, tighten all screws, fill coolant, mount the seat. grab these screws pull plastic and grab remaining screws READY!
