How to install RG17 radiator guards (with or without fan) on KTM, Husqvarna and GasGas TBI 2024–2027

Five pages with photos for TBI models: spacer rod lengths, positioning the guard against the radiator mounting, screws and perforations, side plastics. Fitting the fan is covered by the separate Fan Set TBI instructions. PDF in English to download.

Page 1 of 5

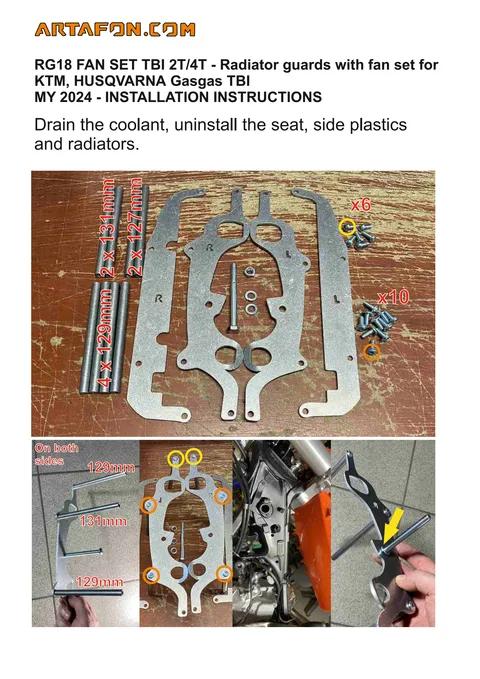

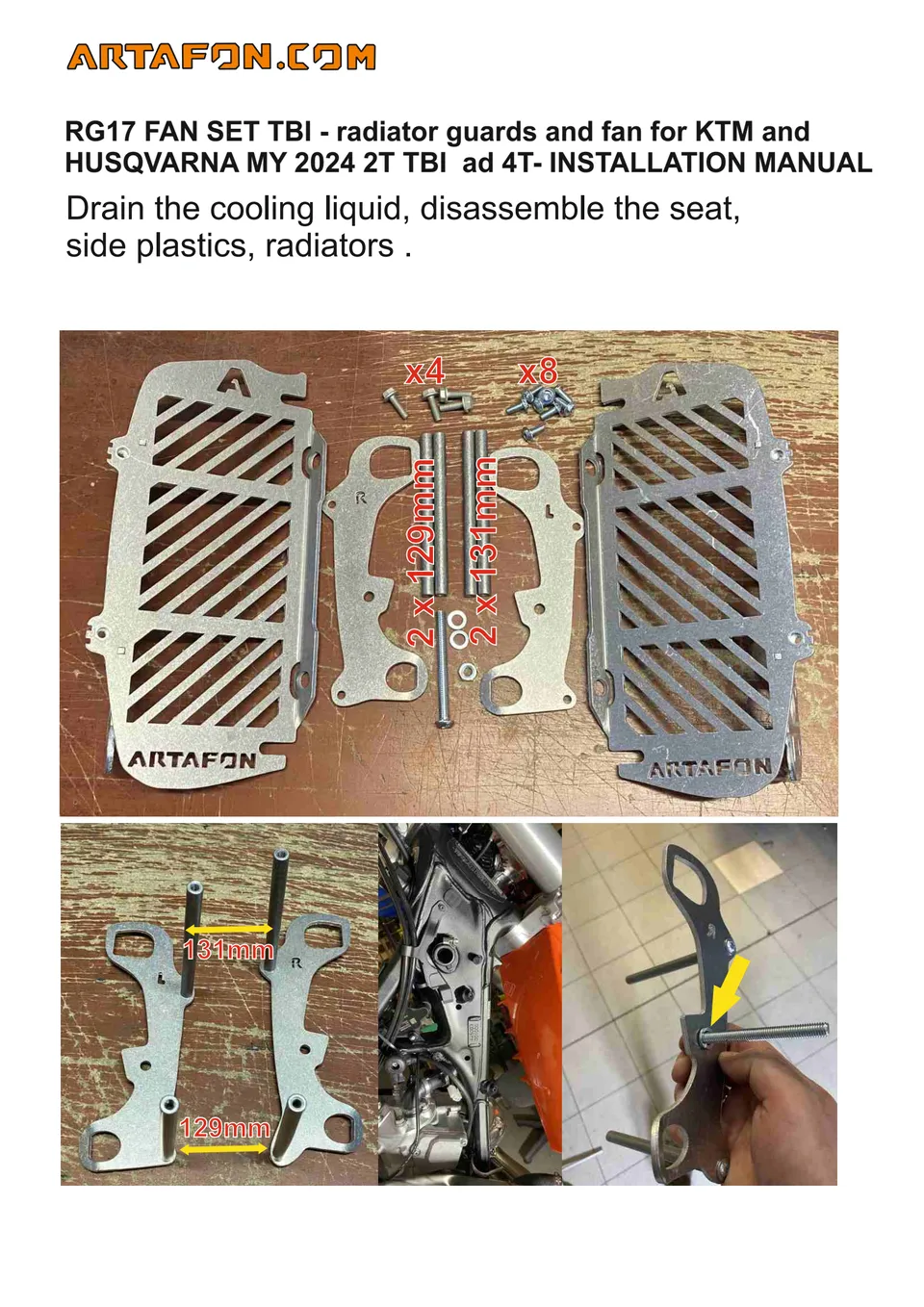

RG17 FAN SET TBI - radiator guards and fan for KTM and HUSQVARNA MY 2024 2T TBI ad 4T- INSTALLATION MANUAL Drain the cooling liquid, disassemble the seat, side plastics, radiators . 2 x 129mm 2 x 131mm

Page 2 of 5

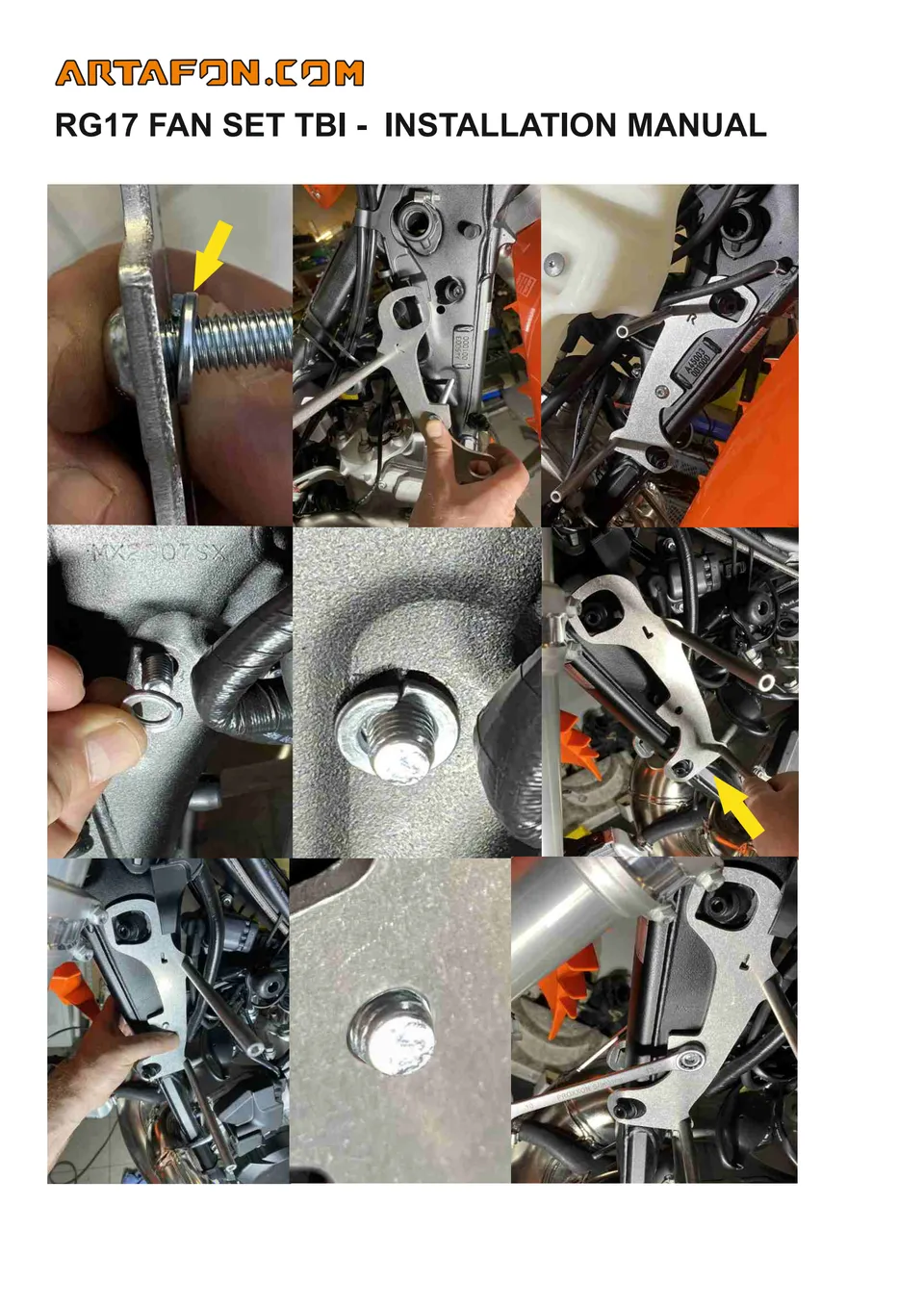

RG17 FAN SET TBI - INSTALLATION MANUAL

Page 3 of 5

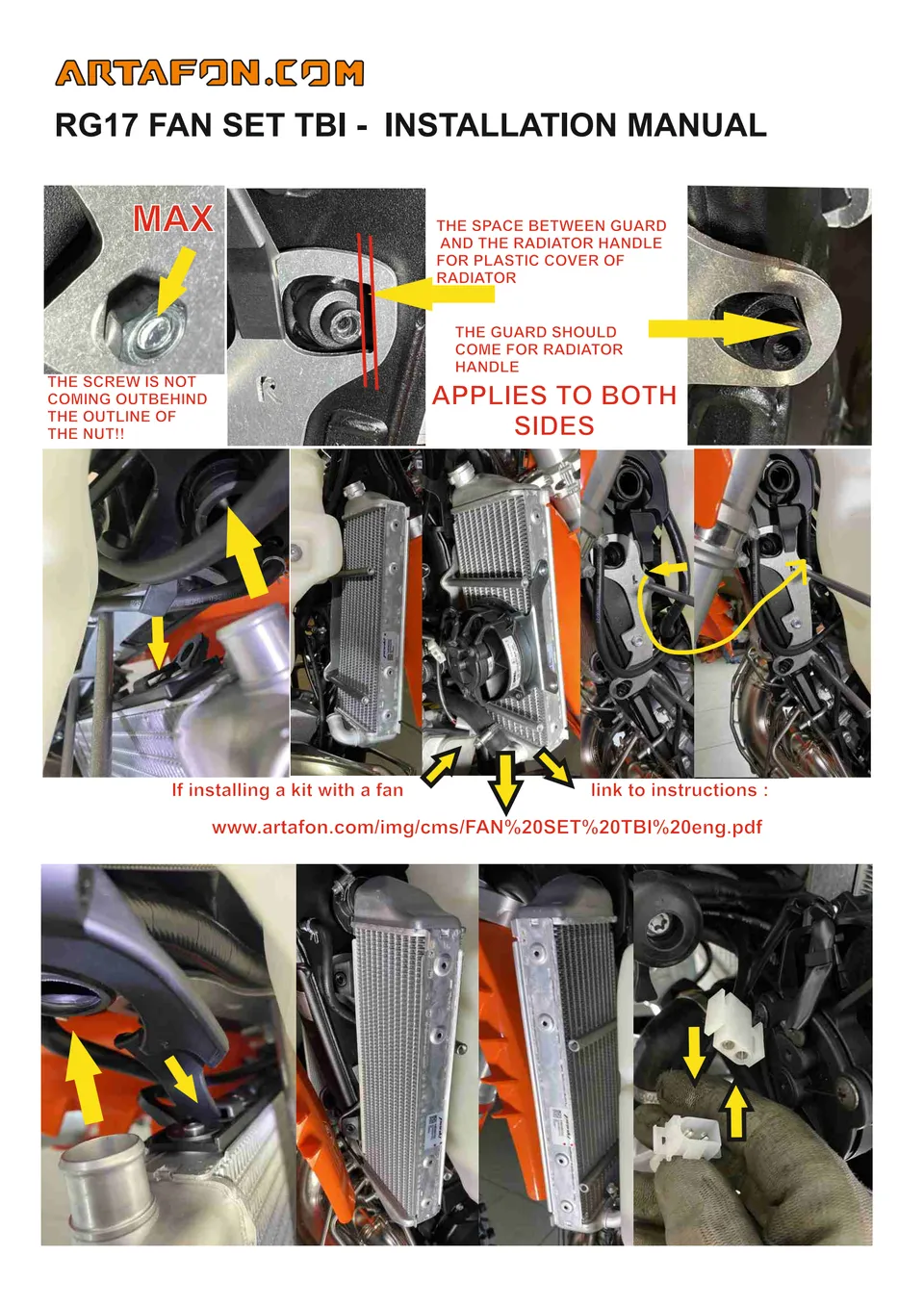

RG17 FAN SET TBI - INSTALLATION MANUAL THE SPACE BETWEEN GUARD AND THE RADIATOR HANDLE FOR PLASTIC COVER OF RADIATOR THE GUARD SHOULD COME FOR RADIATOR HANDLE THE SCREW IS NOT COMING OUTBEHIND THE OUTLINE OF THE NUT!! APPLIES TO BOTH SIDES If installing a kit with a fan link to instructions :

Page 4 of 5

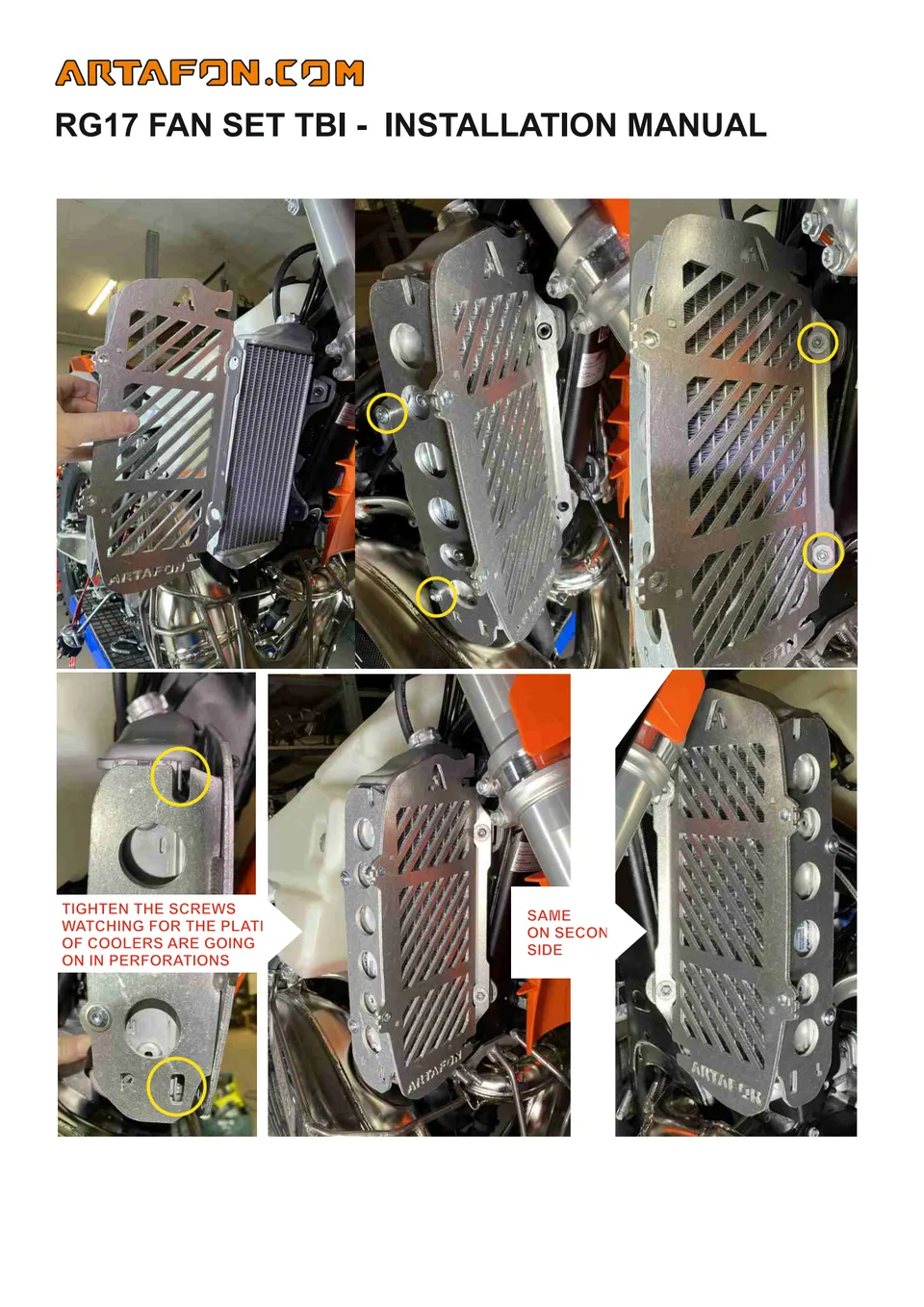

RG17 FAN SET TBI - INSTALLATION MANUAL TIGHTEN THE SCREWS WATCHING FOR THE PLATES OF COOLERS ARE GOING ON IN PERFORATIONS SAME ON SECOND SIDE

Page 5 of 5

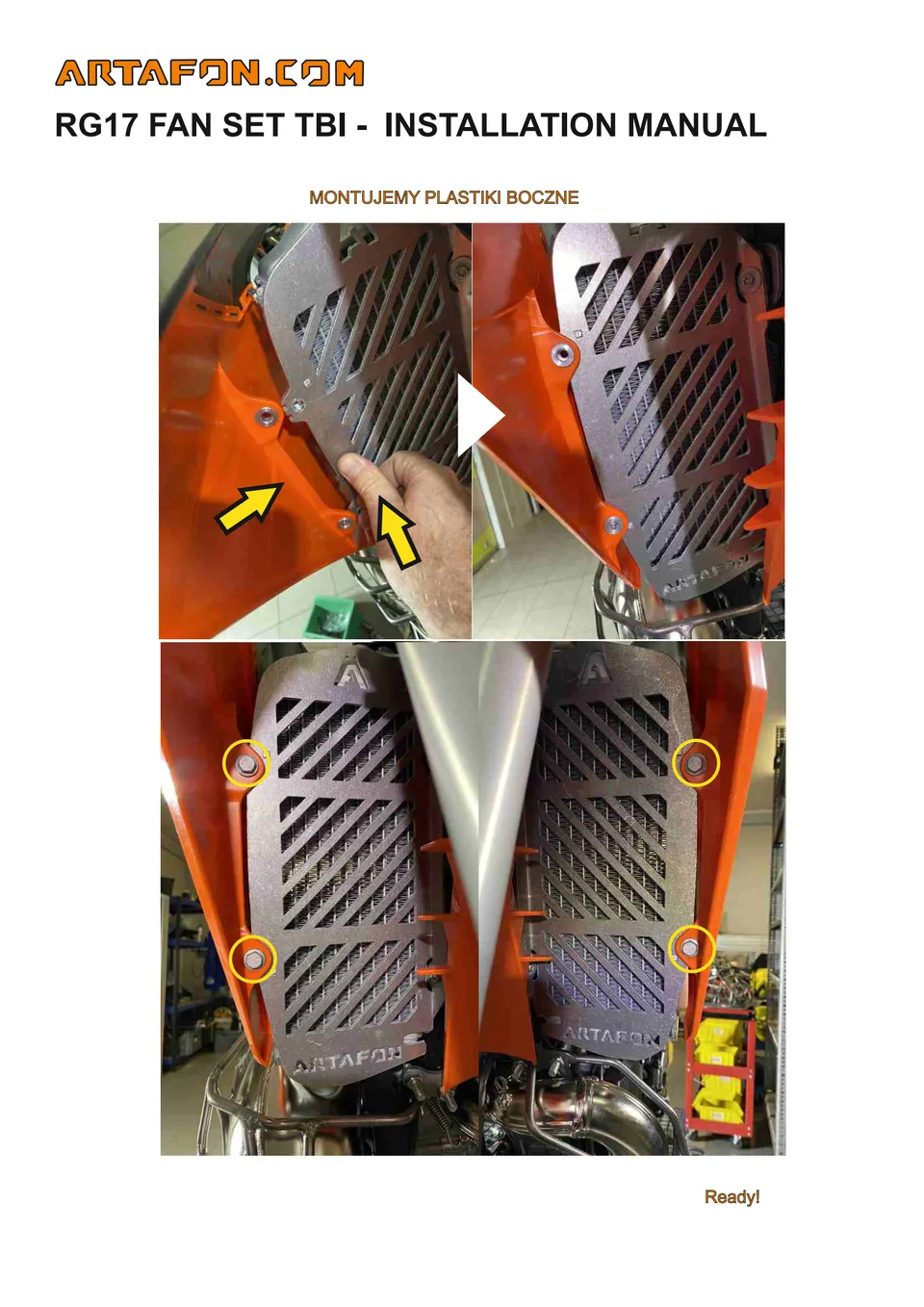

RG17 FAN SET TBI - INSTALLATION MANUAL MONTUJEMY PLASTIKI BOCZNE Ready!
