How to install the RG10 Fan Set (radiator guards + fan kit) on KTM, Husqvarna and GasGas 2020–2023

Six pages with photos: removing the radiators, positioning the brackets, fitting the fan on the guard, fitting radiators and guards, refilling the system. The kit fits KTM and Husqvarna 2020–2023 as well as GasGas 2021–2023. PDF in English to download.

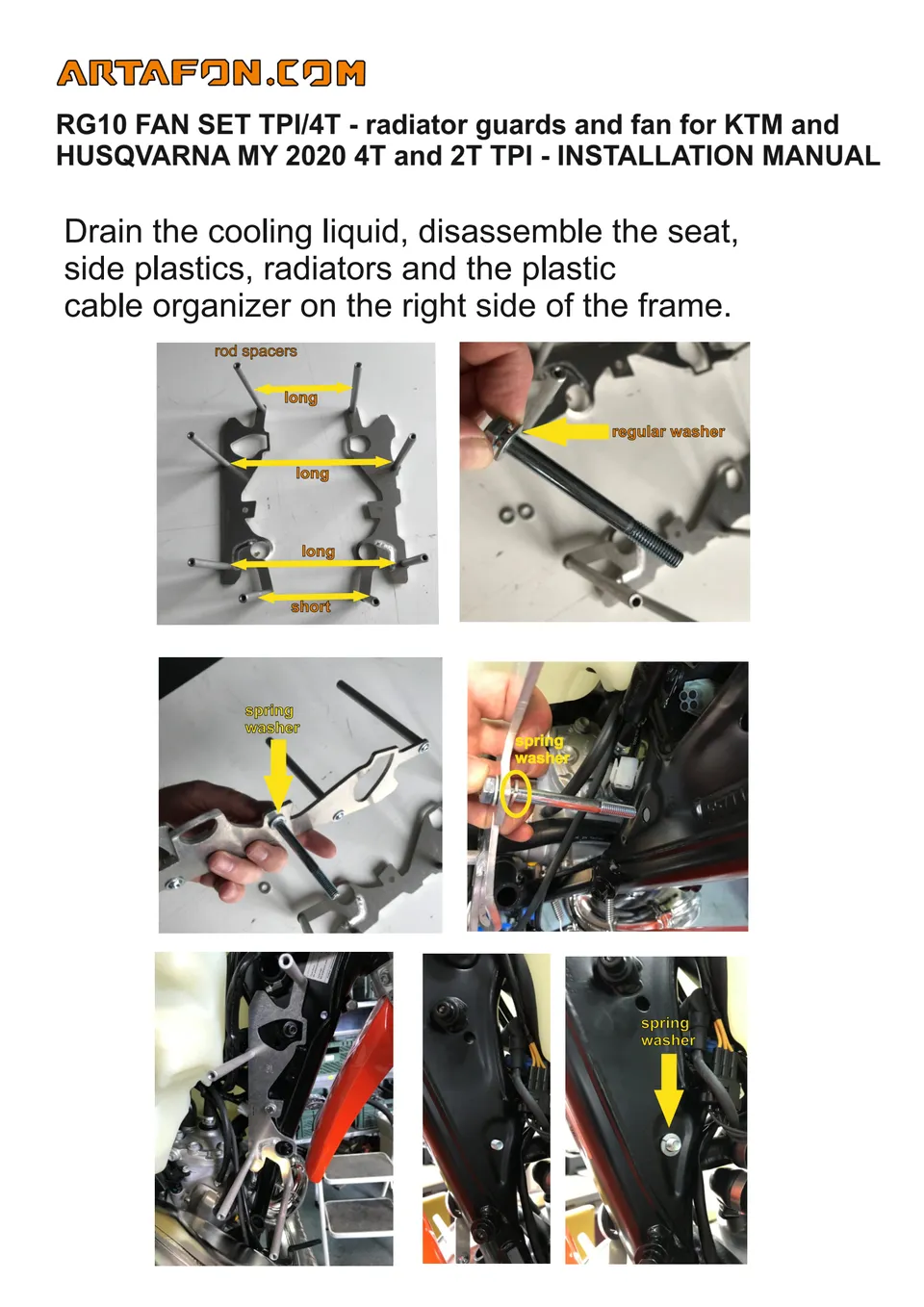

Page 1 of 6

RG10 FAN SET TPI/4T - radiator guards and fan for KTM and HUSQVARNA MY 2020 4T and 2T TPI - INSTALLATION MANUAL Drain the cooling liquid, disassemble the seat, side plastics, radiators and the plastic cable organizer on the right side of the frame.

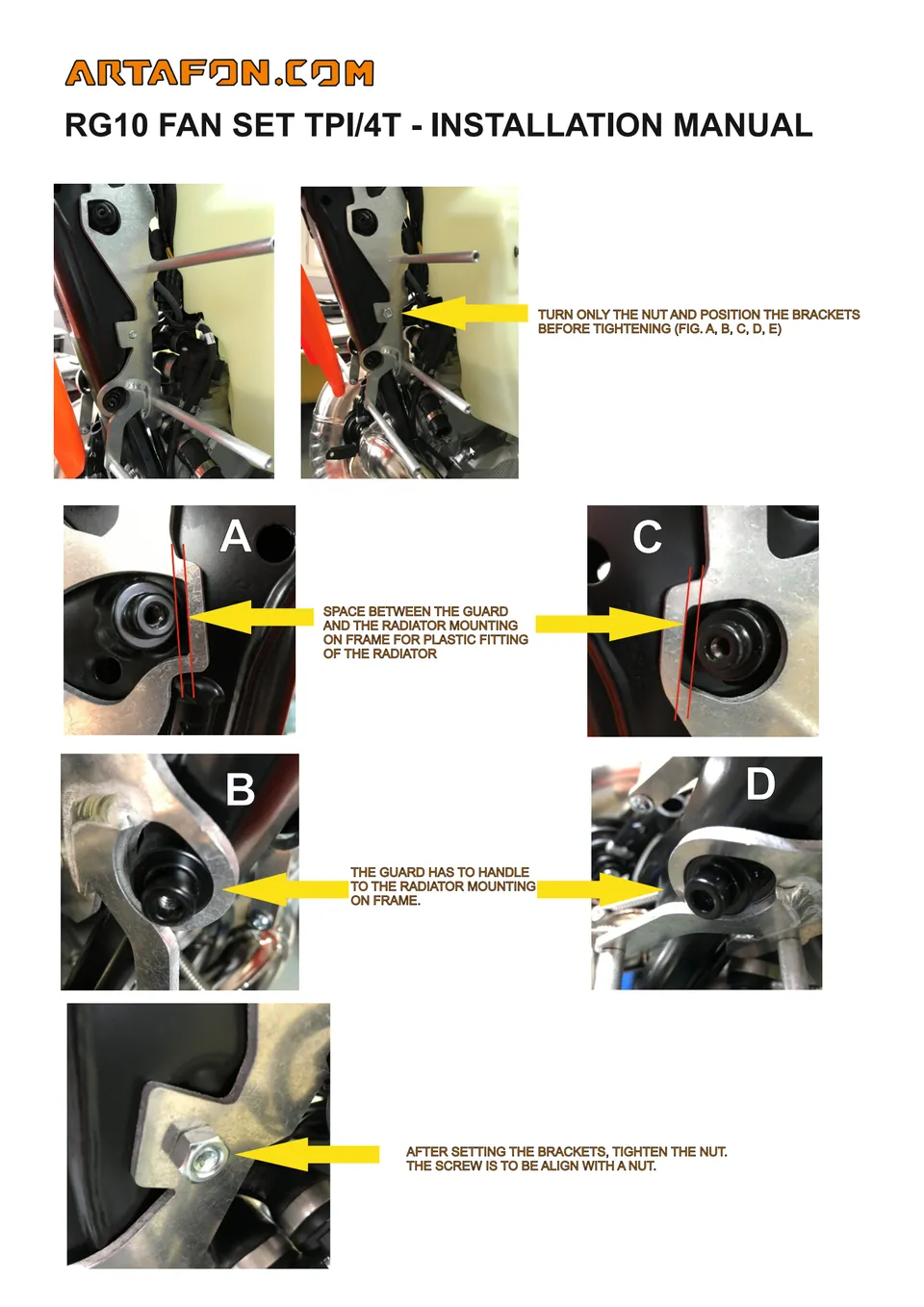

Page 2 of 6

RG10 FAN SET TPI/4T - INSTALLATION MANUAL TURN ONLY THE NUT AND POSITION THE BRACKETS BEFORE TIGHTENING (FIG. A, B, C, D, E) SPACE BETWEEN THE GUARD AND THE RADIATOR MOUNTING ON FRAME FOR PLASTIC FITTING OF THE RADIATOR THE GUARD HAS TO HANDLE TO THE RADIATOR MOUNTING ON FRAME. AFTER SETTING THE BRACKETS, TIGHTEN THE NUT. THE SCREW IS TO BE ALIGN WITH A NUT.

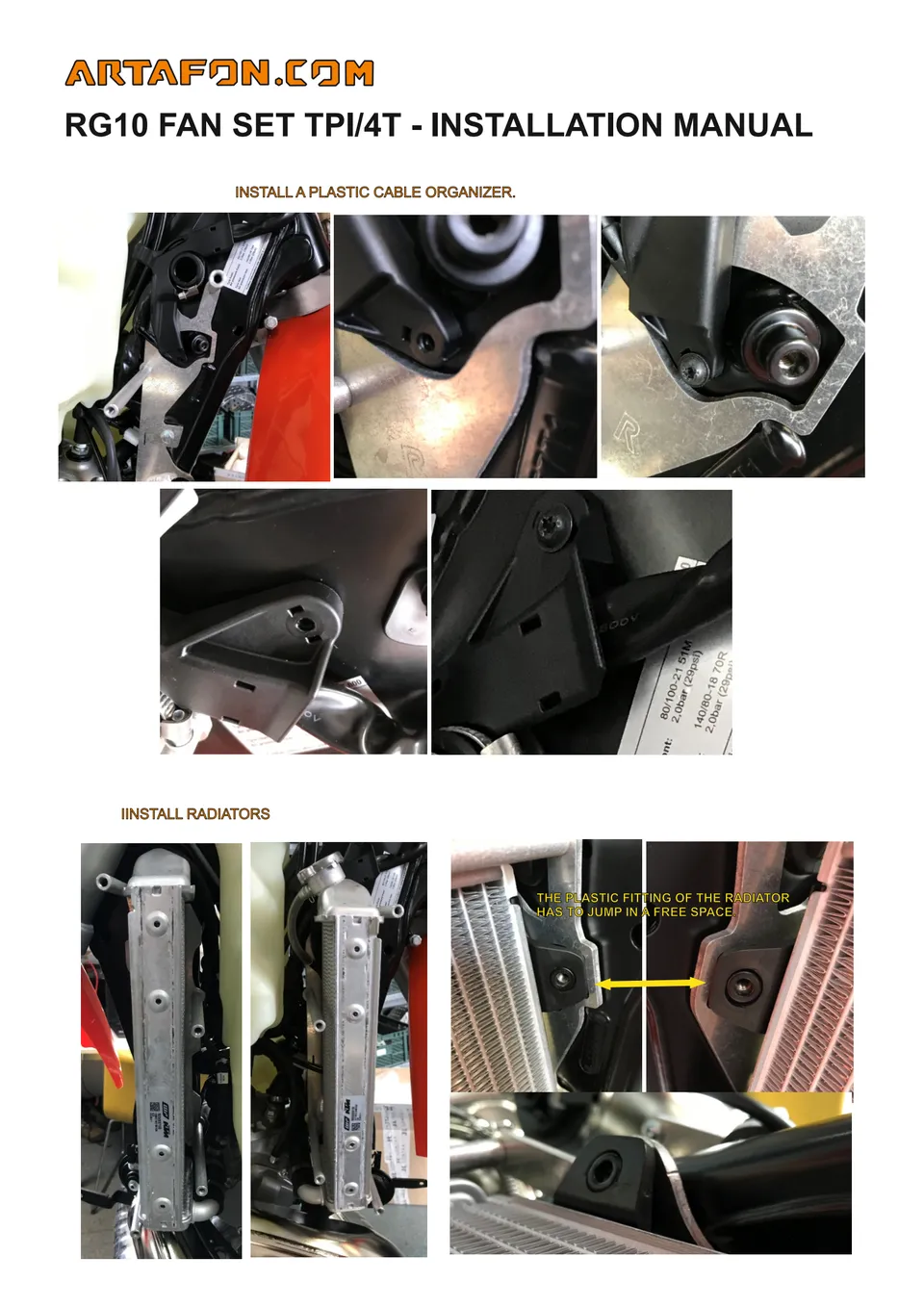

Page 3 of 6

RG10 FAN SET TPI/4T - INSTALLATION MANUAL INSTALL A PLASTIC CABLE ORGANIZER. THE PLASTIC FITTING OF THE RADIATOR HAS TO JUMP IN A FREE SPACE.

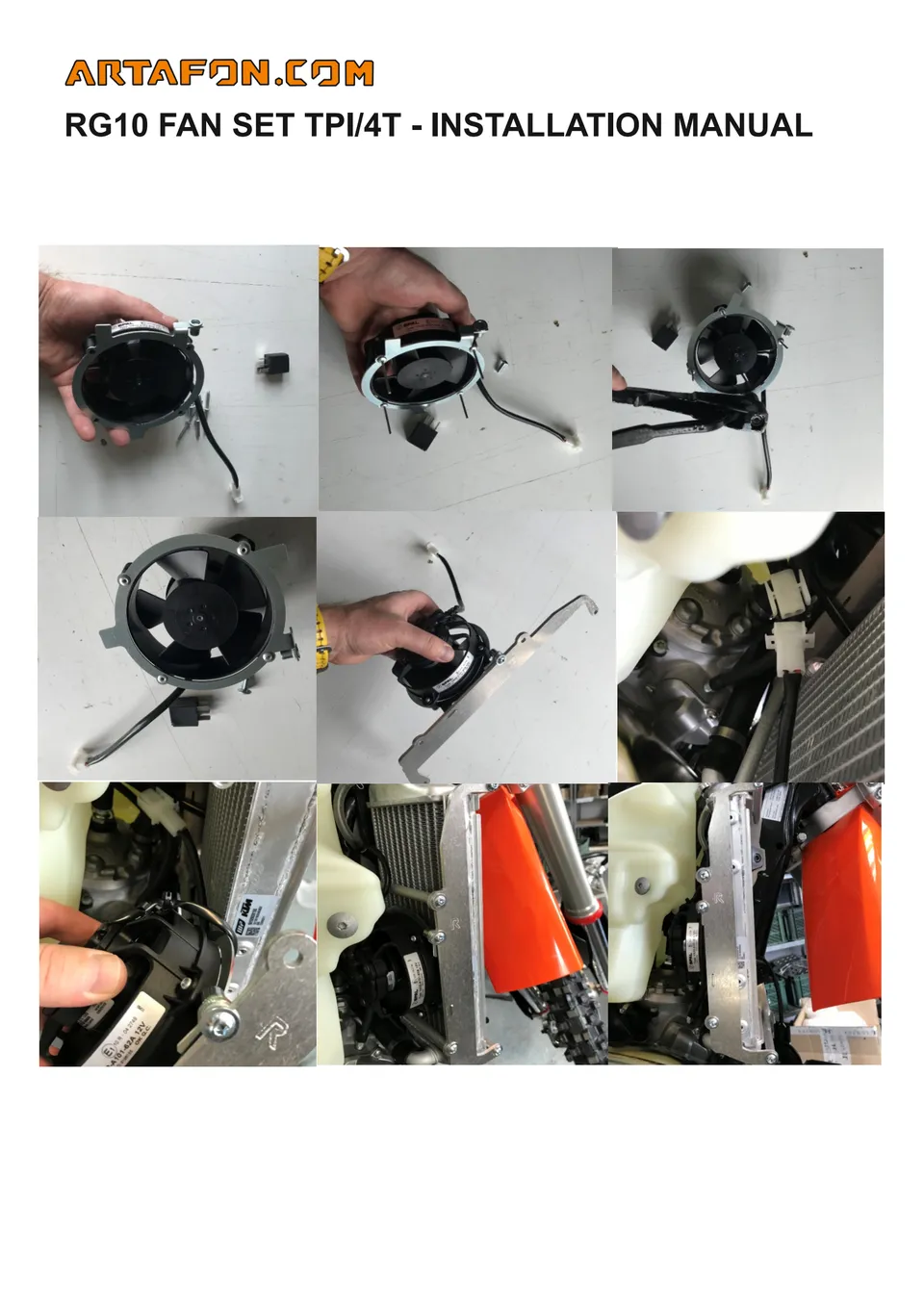

Page 4 of 6

RG10 FAN SET TPI/4T - INSTALLATION MANUAL

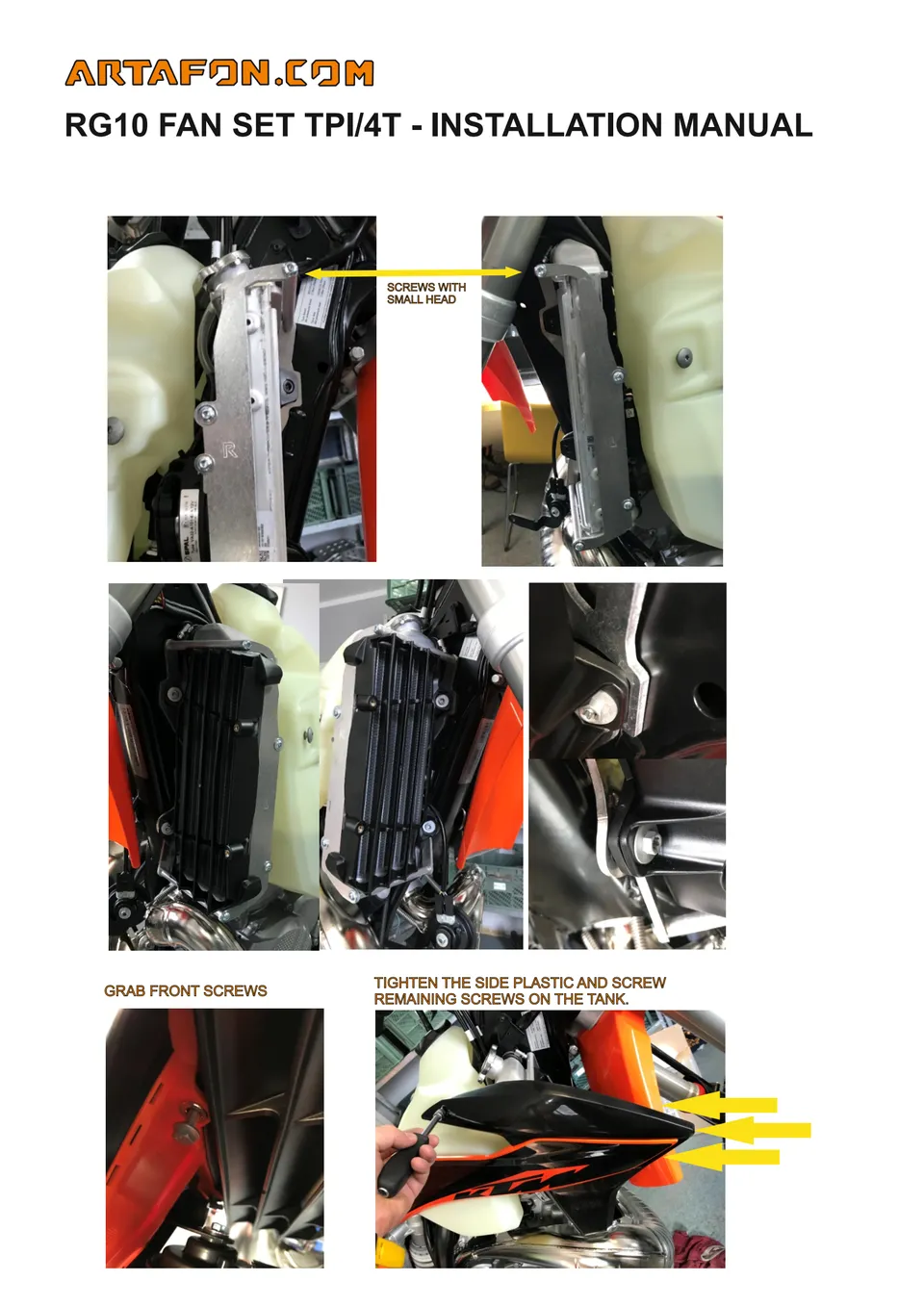

Page 5 of 6

RG10 FAN SET TPI/4T - INSTALLATION MANUAL SCREWS WITH SMALL HEAD GRAB FRONT SCREWS TIGHTEN THE SIDE PLASTIC AND SCREW REMAINING SCREWS ON THE TANK.

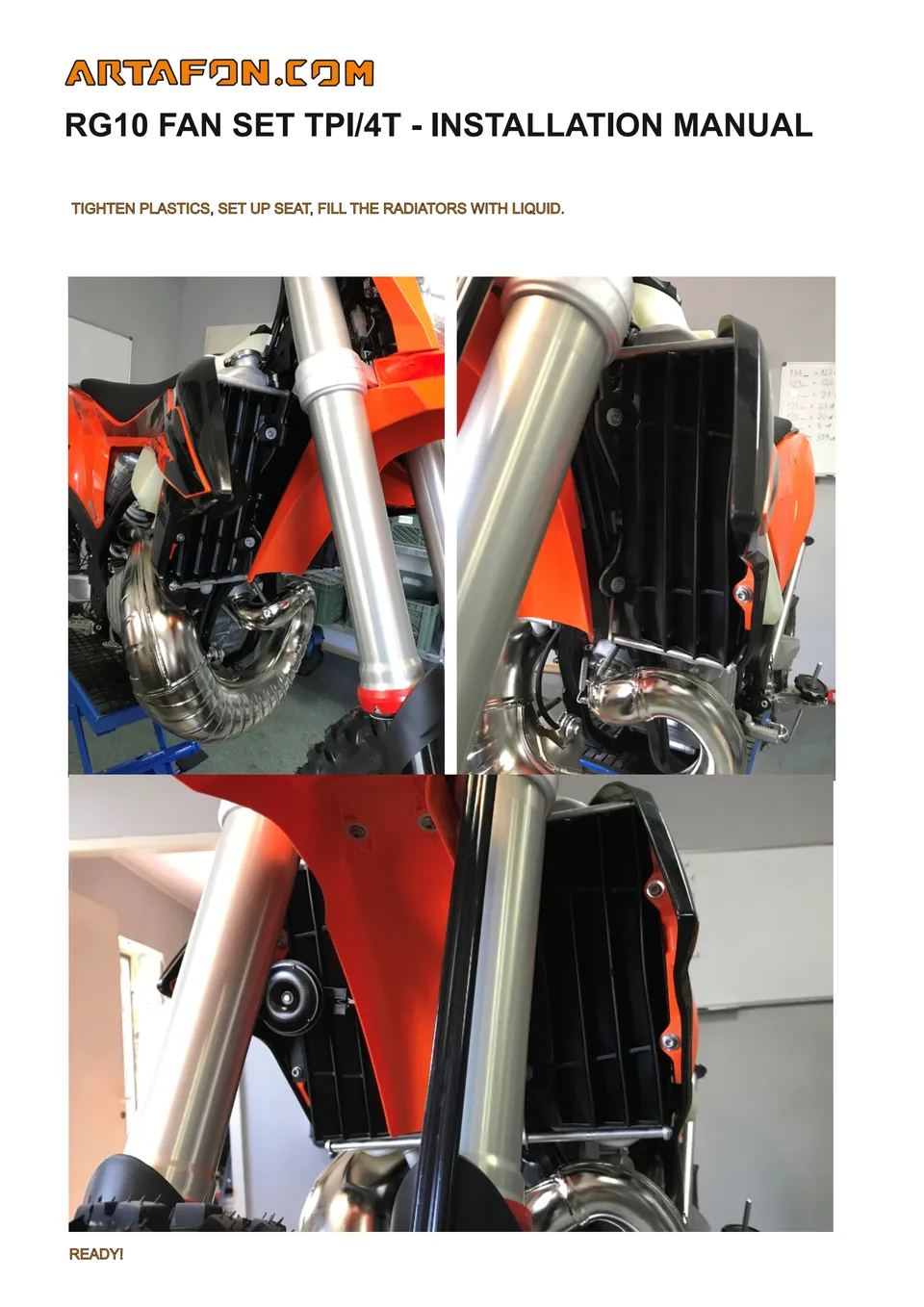

Page 6 of 6

RG10 FAN SET TPI/4T - INSTALLATION MANUAL TIGHTEN PLASTICS, SET UP SEAT, FILL THE RADIATORS WITH LIQUID. READY!
